Not Recommended for New Design (NRND)

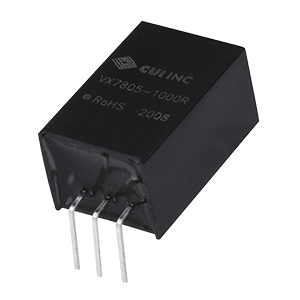

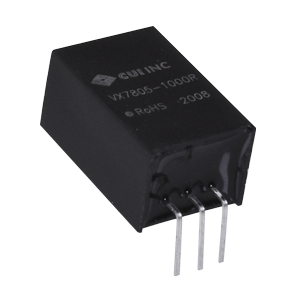

VX78-1000R Series

This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please visit the  parametric search to find available replacements.
View Recommended Replacements

Recommended Replacements

P78A-1000 Series

P78A-1000 Series

The compact P78A-1000 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.

View Product
Features
  • Pin compatible with LM78XX and LM79XX linear regulators
  • Wide input voltage range
  • Suited for negative output applications
  • No-load input current as low as 0.2 mA
  • Efficiency up to 96%
Specifications
  • Power (W): 3.3 ~ 15
  • Input Voltage Range (VDC): 6 ~ 36
  • Output Voltage (VDC): 3.3 ~ 15
  • Standard Footprint: SIP3
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Approvals: UL/cUL
  • RoHS Compliant: Yes
