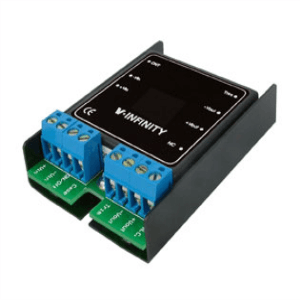

VSCQ30-Q24-T Series

The VSCQ30-Q24-T Series is a high-efficiency DC-DC converter family designed for applications demanding reliable performance from a 24 V input in harsh environments. Delivering up to 30 W of output power, these converters operate from an 9 ~ 36 VDC input voltage range and provide multiple regulated output options. The series features a fully encapsulated quarter-brick package with integrated heatsink for superior thermal management and durability. With advanced protection features—including overvoltage, overcurrent, and thermal shutdown—the VSCQ30-Q24-T Series is ideal for industrial, communications, and instrumentation applications requiring robust and stable power conversion.

Features

Efficiency up to 91%
Fixed 300 KHz switching frequency
4:1 input range
Regulated outputs
Continuous short circuit protection (SCP)
Six-sided metal case or open-frame
Industry standard pin-out

Specifications

Power (W): 30
Input Voltage Range (VDC): 9 ~ 36
Output Voltage (VDC): 3.3 ~ 15
Isolated: Yes
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
