VQA2-S Series

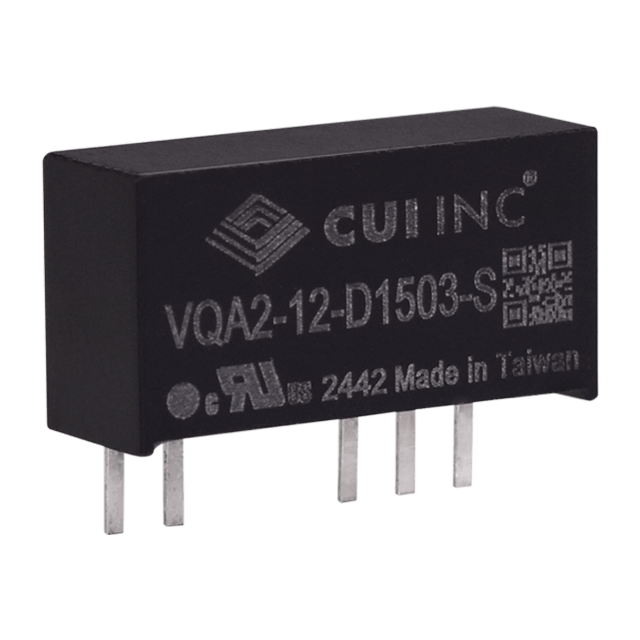

The VQA2-S series is a 7-pin SIP isolated DC-DC converter designed for IGBT and SiC driver applications. Featuring dual regulated outputs, reinforced insulation, and 7000 Vdc isolation, these DC-DC converters are ideally suited to provide a fully isolated gate drive for wind turbine and solar panel applications.
Features
  • Dual Regulated Output
  • Designed for IGBT and SiC driver applications
  • Reinforced insulation
  • 5 pF max isolation capacitance
Specifications
  • Power (W): 2
  • Input Voltage Range (VDC): 4.5 ~ 26.4
  • Output Voltage (VDC): 6 ~ 20
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: SIP7
  • Isolation (VDC): 7000
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: UL/cUL
  • RoHS Compliant: Yes
