VHK100W-Q48-S24 DC-DC Converters
100 W DC-DC Converter, 24 VDC, 4.17 A Output, 18 ~ 75 VDC Input Range, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (W) | 100 |
| Input Voltage Range (VDC) | 18 ~ 75 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 4.17 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 107.95 x 101.6 x 38.1 |
| Dimensions L x W x H (in) | 4.25 x 4 x 1.5 |
| Mounting Type | Chassis Mount |
| Market | ITE |
| Features | Output Trimming (external resistance), Remote On/Off, Remote Sense |
| Options | Extended Temp Range |
| Isolation (VDC) | 1500 |
| Isolated | Yes |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
Compatible Products with VHK100W-Q48-S24
Related Products

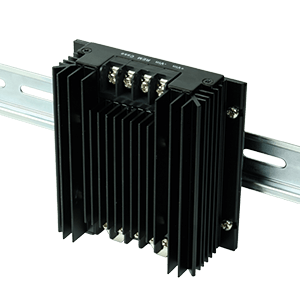

VHK100W-Q48-S24-DIN
