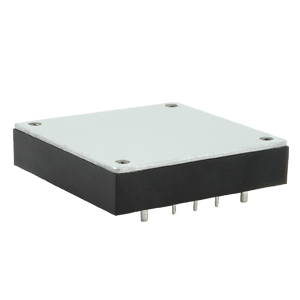

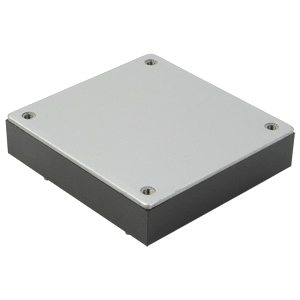

The VHB350 series is an industry standard half brick DC-DC converter housed in a rugged aluminum case. Featuring efficiency up to 92.5%, these high power DC-DC converters are ideal for low voltage bus applications where board space is limited and energy consumption is a concern.
Features
  • 2:1 input range
  • Single regulated output
  • Industry standard half brick package
  • Remote on/off control
  • Output trim
  • Remote sense
  • Efficiency up to 92.5%
Specifications
  • Power (W): 231 ~ 350
  • Input Voltage Range (VDC): 18 ~ 75
  • Output Voltage (VDC): 3.3 ~ 28
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: 1
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
