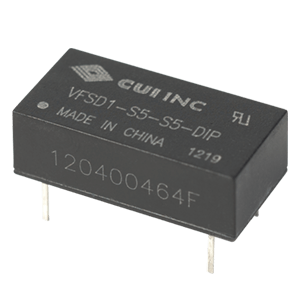

VFSD1-DIP Series
Recommended Replacements

PCN1-S Series
The PCN1-S unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 83% and 1,500 Vdc isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product
PEM1A-S Series
The low cost PEM1A-S unregulated DC-DC converter series delivers efficiency up to 70% and 4,000 Vdc isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +85ºC operating temperature range, this low power DC-DC converter is ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product- Industry standard 14 pin DIP package
- Single unregulated output
- Internal SMD construction
- UL94-V0 package material
- -40 to +85°C temperature range
- Power (W): 1
- Input Voltage Range (VDC): 3 ~ 26.4
- Output Voltage (VDC): 3.3 ~ 24
- Isolation (VDC): 3000
- Isolated: Yes
- Safety Approvals: UL/cUL
- RoHS Compliant: Yes
