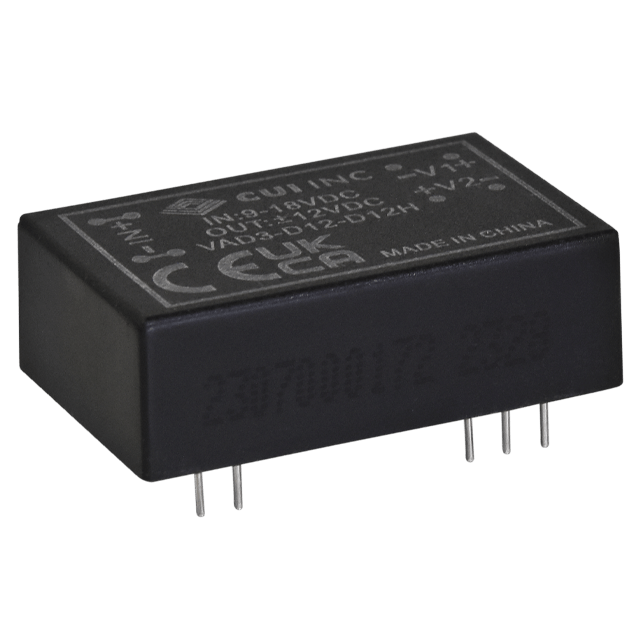

VAD3-D12 Series

The VAD3-D12 series is a compact, isolated 3 W DC-DC converter with a 12 V input, high efficiency, and wide operating temperature range, ideal for industrial and telecom applications.
Features
  • Efficiency up to 80%
  • Dual regulated outputs
  • Pi input filter
  • Low ripple and noise
  • Continuous short circuit protection (SCP)
Specifications
  • Power (W): 1.98 ~ 3
  • Input Voltage Range (VDC): 9 ~ 18
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -25 ~ +71
  • Dimensions L x W x H (mm): 31.75 x 20.32 x 10.16
  • Dimensions L x W x H (in): 1.25 x 0.8 x 0.4
  • Standard Footprint: DIP24
  • Isolated: Yes
  • RoHS Compliant: Yes
