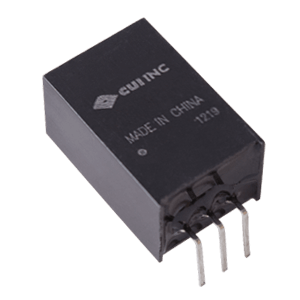

V78W-500R Series
V78W-500R Series
V78W-500R Series
Discontinued

V78W-500R Series

This product has been discontinued. If you have any questions or concerns, please contact our sales team.
View Recommended Replacements

Recommended Replacements

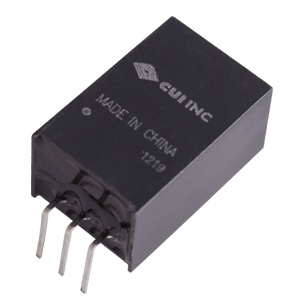

P78A-0500 Series

P78A-0500 Series

The compact P78A-0500 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.

View Product
Features
  • 0.5 A
  • 3 ~ 24 Vdc output options
  • 72 Vdc max input voltage
  • Ultra-wide input voltage range
  • High efficiency up to 95%
  • No heat sink required
  • Pin compatible with LM78XX and LM79XX linear regulators
  • Low ripple and noise
  • UL94-V0 package material
  • -40 to +85°C temperature range
Specifications
  • Power (W): 1.65 ~ 7.5
  • Input Voltage Range (VDC): 9 ~ 72
  • Output Voltage (VDC): 3.3 ~ 24
  • Isolation (VDC): 0
  • RoHS Compliant: Yes
