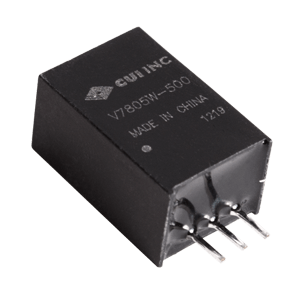

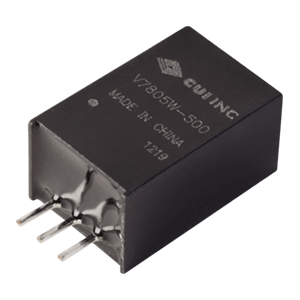

V78W-500 Series
Recommended Replacements for V78W-500 Series
P78W-500 Series
The P78W-500 series is a family of compact non-isolated DC-DC converters designed to offer a high performance alternative to linear regulators. Housed in a compact 3-pin SIP package, this series is pin compatible with LM78XX model regulators and features a wide input voltage range. Additionally, the P78W-500 does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
View ProductSpecifications
- Power (W): 1.65 ~ 7.5
- Input Voltage Range (VDC): 9 ~ 72
- Output Voltage (VDC): 3.3 ~ 24
- Isolation (VDC): 0
- Isolated: No
- RoHS Compliant: Yes
Features
- 0.5 A
- 3 ~ 24 VDC output options
- 72 VDC max input voltage
- -40°C ~ +85°C temperature range
- Pin compatible with LM78XX linear regulators
- Wide input voltage range
- Low ripple and noise
- Efficiency up to 95%
- UL94-V0 package material
