Discontinued

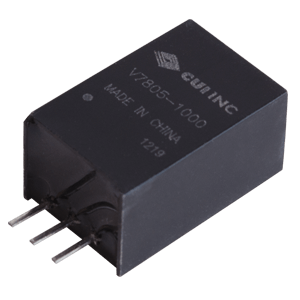

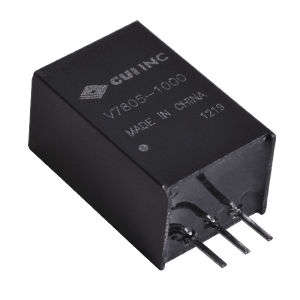

V78-1000 Series
Recommended Replacements
P78A-1000 Series
The compact P78A-1000 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
View Product
Features
- 1 A
- 3 ~ 15 Vdc output options
- 32 Vdc max input voltage
- -40 to +85°C temperature range
- Pin compatible with LM78XX linear regulators
- Wide input voltage range
- Low ripple and noise
- Efficiency up to 97%
- UL94-V0 package material
Specifications
- Power (W): 3.3 ~ 15
- Input Voltage Range (VDC): 4.75 ~ 32
- Output Voltage (VDC): 3.3 ~ 15
- Isolation (VDC): 0
- Isolated: No
- RoHS Compliant: Yes
