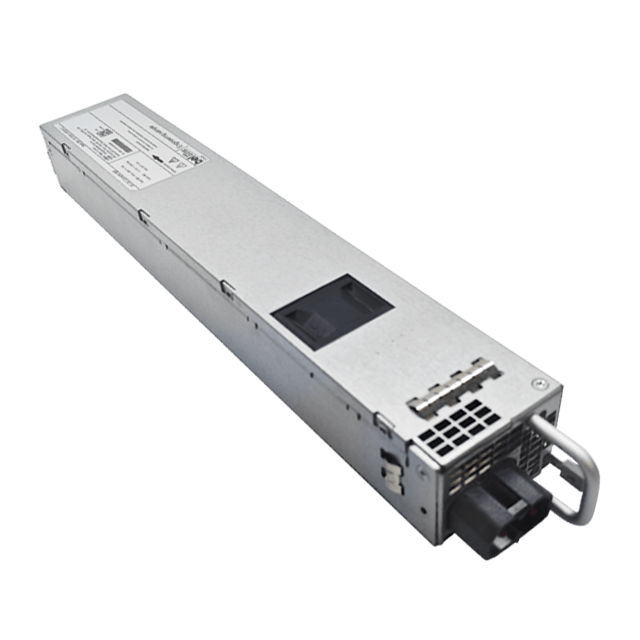

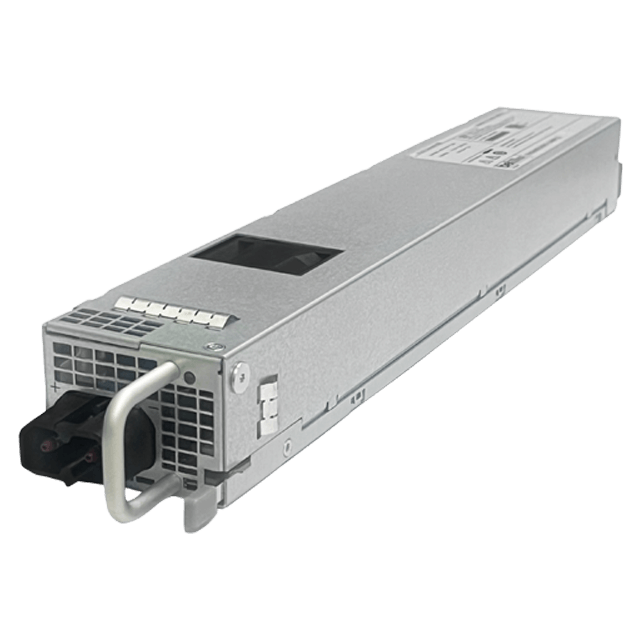

TET2500-12-054 (DC-DC) Series

The TET2500-12-054 (DC-DC) Series series is a 2500 W DC to DC power supply that converts -40 ~ -72 VDC voltage into an insulated main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET2500-12-054 (DC-DC) Series series utilizes full digital control architecture for greater efficiency, control, and functionality. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • High Efficiency, typ. 95.5% efficiency at half load
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Full digital controls for improved performance
  • High power density design: 59 W/in3
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
  • Over current protection (OCP)
  • 256 Bytes of EEPROM for user information
  • Black Box recorder available
  • Status LED with fault signaling
  • Power Management Bus communication interface for control, programming and monitoring
Specifications
  • Power (W): 2500
  • Input Voltage Range (VDC): -40 ~ -72
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 5 ~ 12
  • Operating Temperature Range (ºC): -5 ~ +65
  • Dimensions L x W x H (mm): 321.5 x 54.5 x 40
  • Dimensions L x W x H (in): 12.66 x 2.14 x 1.57
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CQC, CSA, Nemko
  • RoHS Compliant: Yes
