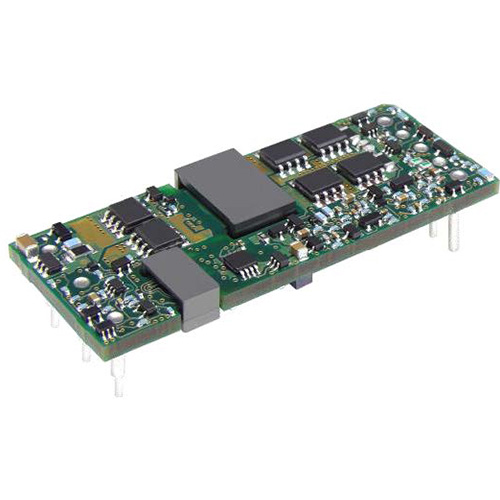

SQE48T40018-NDBKG DC-DC Converters
Eighth-Brick DC-DC Converter | Power 72W | Output 1.8VDC, 40A | Input 36-75VDC | Through Hole Mount | Negative ON/OF | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 72 |
| Input Voltage Range (VDC) | 36 ~ 75 |
| Output Voltage (VDC) | 1.8 |
| Output Current (A) | 40 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 58.42 x 22.86 x 9.4 |
| Dimensions L x W x H (in) | 2.3 x 0.9 x 0.37 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/8 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Pin Length (in) | 0.145 |
| Safety Standards | 62368 |
| Safety Approvals | CB, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
Compatible Products with SQE48T40018-NDBKG
Accessories
F4804A-RG
DC-DC Converter Input Filter | Operating Input Voltage Range 0-80V | Maximum Operating Current 4A | Surface Mount
View Product
Accessories
F4810-G
DC-DC Converter Input Filter | Operating Input Voltage Range 0-80V | Maximum Operating Current 10A | Surface Mount
View Product
