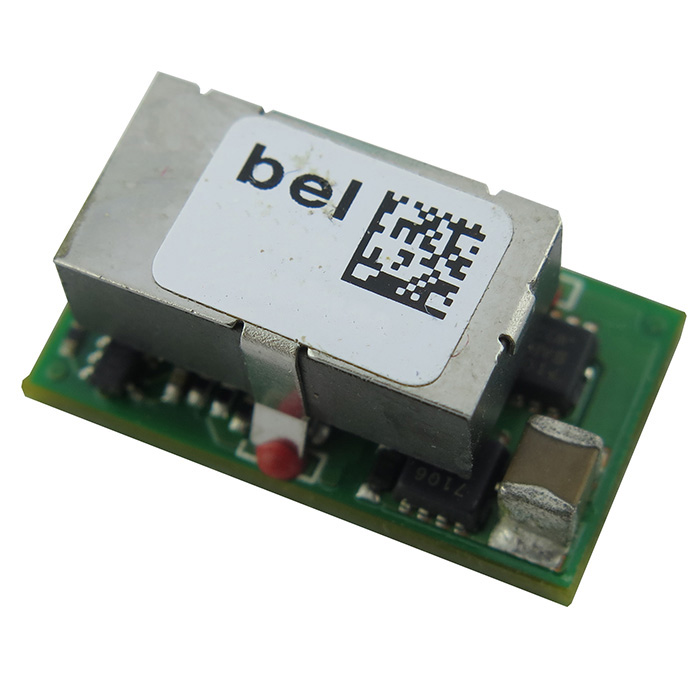

SLIN-12F2A0 DC-DC Converters
Non Isolated POL | Power 40W | Output 0.6-3.63 VDC, 12A | Input 2.4-5.5VDC | Active High
Stock Check
Country - USA
Features & Specifications
| Power (W) | 40 |
| Input Voltage Range (VDC) | 2.4 ~ 5.5 |
| Output Voltage (VDC) | 0.6 ~ 3.63 |
| Output Current (A) | 12 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 20.32 x 11.43 x 8.48 |
| Dimensions L x W x H (in) | 0.8 x 0.45 x 0.334 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Horizontal |
| Sequencing Option | No |
| Safety Standards | 62368 |
| Safety Approvals | CB, Nemko, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
