Not Recommended for New Design (NRND)
RQB-50Y Series
Recommended Replacements

0RQB-50Y12 Series

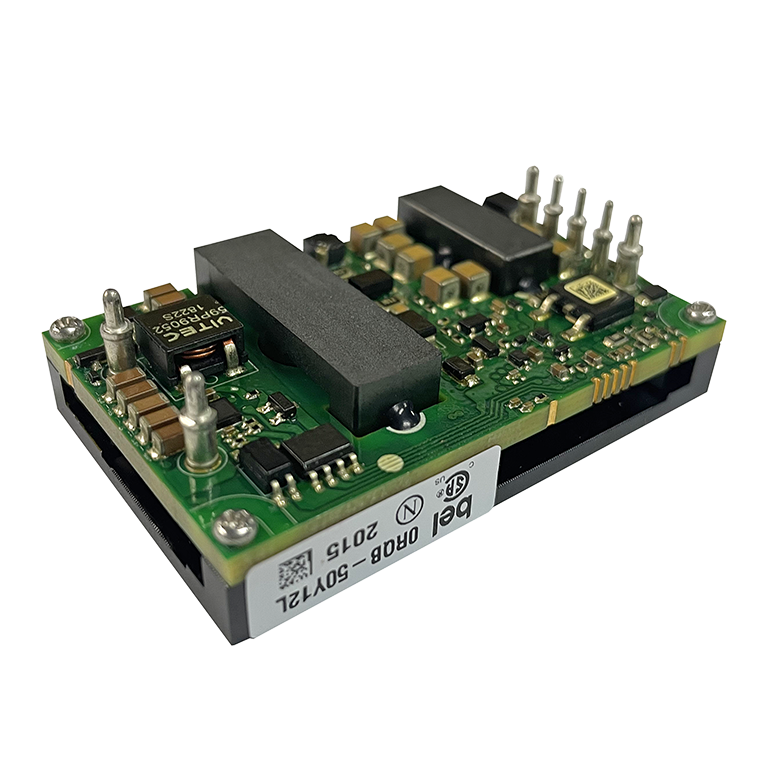

The 0RQB-50Y12L is an isolated DC-DC converter providing 50 W of output power from a wide input range (24 V,48 V,72 V,96 V,110 V typical). Standard features include remote on/off, input under-voltage protection, output over-voltage protection, over current and short circuit protection. This converter can also provide a 5 V/5 mA auxiliary supply. When a large hold-up capacitor is added, the converter can still work up to 12 mS when the input supply is interrupted. Conformal coated PCB is used for environmental ruggedness.
View Product
Specifications
- Power (W): 50
- Input Voltage Range (VDC): 14 ~ 160
- Output Voltage (VDC): 12 ~ 54
- Standard Footprint: 1/4 Brick
- Isolation (VDC): 3000
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: CB, CE, CSA, Nemko
- RoHS Compliant: Yes
