RCM500/1000 Series

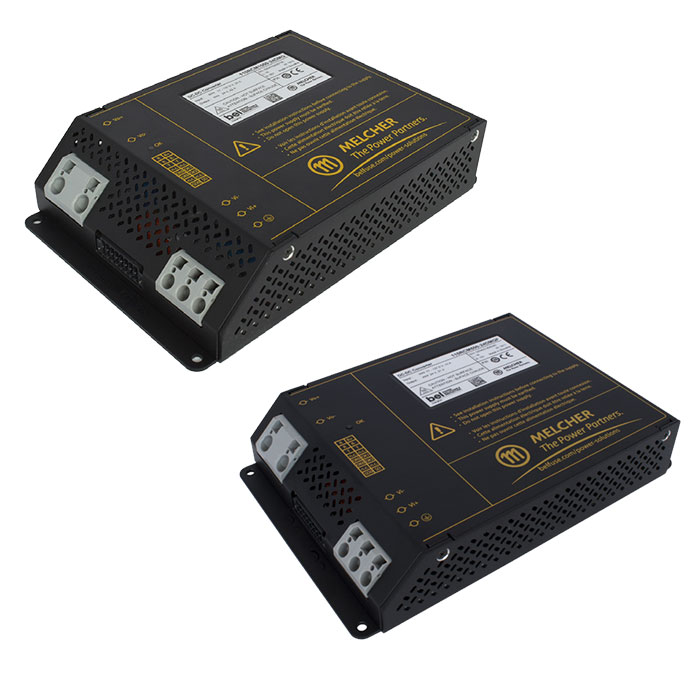

The RCM Series converters are reliable power supplies for railway and transportation systems. There are 2 input voltage ranges covering all common railway batteries. The output delivers 150 or 300 W at 12, 15 or 24 V. The converters are designed for chassis mounting and exhibit a closed housing. Many options are available, such as an output Active ORing for redundant operation, output voltage adjustment, interruption time of 10 ms (class ST2), shutdown input, and an output voltage monitor controlling a relay (change-over contact).

The RCM200/300 Dual Output Series DC-DC converters are reliable power supplies for railway and transportation systems. There are 2 input voltage ranges covering all common railway batteries. The dual output delivers 200 W / 300 W at +15 V / -15 V or +24 V / -24 V respectively. The converters are designed for chassis mounting and exhibit a closed housing with cooling openings. Many features are available, such as an output ORing FET for redundant operation, Extended Hold-up of 10 ms (class S2), shutdown input, and an Voltage Monitoring controlling a relay.

The RCM Series converters are reliable power supplies for railway and transportation systems. The input voltage ranges covering all common battery voltages from 12 to 110 V. The output delivers 60 W at 12, 15 or 24 V. The converters are designed for chassis mounting and exhibit a closed housing. Many options are available, such as an output Active ORing for a redundant operation, Input fuse and Voltage Monitoringing (solid state relay contact).

The RCM500E Series converters are reliable power supplies ideal for railway and transportation systems. They are optimized for 72V and 110 V railway batteries. The output delivers 24 V with 500 W. The converters are designed for chassis mounting and exhibit a closed housing with cooling slots. Many options are available, such as an output Active ORing for redundant operation, Extended Hold-up (10 ms, Class ST2), shutdown input, output voltage monitoring via solid-state relay contact, and pluggable connectors as an alternative to cage clamp terminals.
