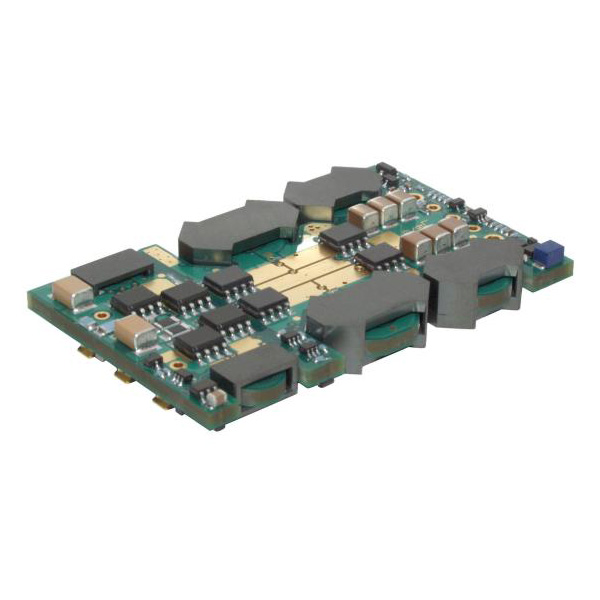

QM48S40033-NS00 DC-DC Converters
Quarter-Brick DC-DC Converter | Power 132W | Output 3.3VDC, 40A | Input 36-75VDC | Surface Mount | Negative ON/OFF
Stock Check
Country - USA
Features & Specifications
| Power (W) | 132 |
| Input Voltage Range (VDC) | 36 ~ 75 |
| Output Voltage (VDC) | 3.3 |
| Output Current (A) | 40 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 58.42 x 36.83 x 7.11 |
| Dimensions L x W x H (in) | 2.3 x 1.45 x 0.28 |
| Mounting Type | Surface Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Pin Length (in) | 0 |
| Safety Standards | 62368 |
| Safety Approvals | CB, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
