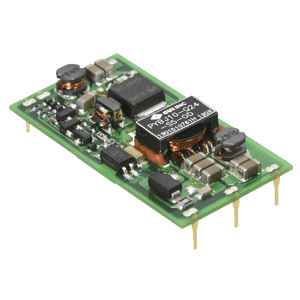

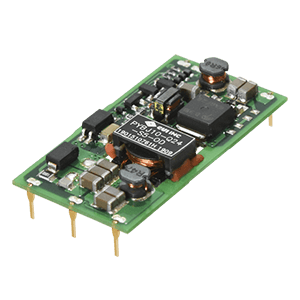

PYBJ10-Q24-S12-OD DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for PYBJ10-Q24-S12-OD
PRC10W-72-S12
10 W DC-DC Converter, 12 VDC, 0.835 A Output, 8.5 ~ 160 VDC Input Range, Through Hole
View ProductFeatures & Specifications
| Power (W) | 10 |
| Input Voltage Range (VDC) | 9 ~ 36 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 0.833 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 39.2 x 20.8 x 6.1 |
| Dimensions L x W x H (in) | 1.543 x 0.819 x 0.24 |
| Mounting Type | Through Hole Mount |
| Features | Output Trimming (external resistance), Remote On/Off |
| Isolation (VDC) | 1500 |
| Isolated | Yes |
| Safety Approvals | UL/cUL |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
