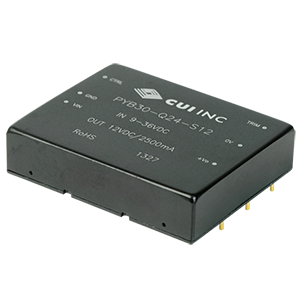

PYB30 Series
Recommended Replacements for PYB30 Series
PDQ30-D Series
The PDQ30-D Series is an encapsulated 30 W isolated DC-DC converter packaged in an industry standard 1” x 1” footprint. These low-profile modules feature a 4:1 input voltage range and offer up to 90% efficiency. Housed in a compact DIP package and featuring a wide -40ºC ~ +105ºC operating temperature range, the series is suitable for convection-cooled equipment. Target applications for the PDQ30-D Series include microcontrollers, datacom, telecom, remote sensor systems and portable electronics.
View Product
PRC40 Series
The PRC40 Series is a single/dual regulated 40 W DC-DC converter designed to meet the needs of commercial, telecom, and other industrial applications. All models meet EN 62368 standards and offer a host of features, including remote on/off control, output voltage trim, as well as a robust operating temperature range.
View ProductSpecifications
- Power (W): 30
- Input Voltage Range (VDC): 9 ~ 75
- Output Voltage (VDC): 3.3 ~ 15
- Isolation (VDC): 1500
- Isolated: Yes
- RoHS Compliant: Yes
Features
- 30 W
- 4:1 input range
- Single/dual/triple regulated outputs
- Industry standard 2" x 1.6" package
- Six-sided shielded case
- Remote on/off control
- Output trim
- -40 to +85°C temperature range
- Efficiency up to 90%
