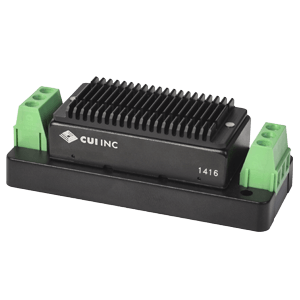

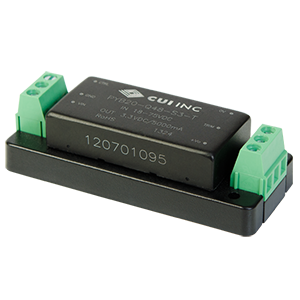

PYB20-T Series
Recommended Replacements for PYB20-T Series
PDQ30-D Series
The PDQ30-D Series is an encapsulated 30 W isolated DC-DC converter packaged in an industry standard 1” x 1” footprint. These low-profile modules feature a 4:1 input voltage range and offer up to 90% efficiency. Housed in a compact DIP package and featuring a wide -40ºC ~ +105ºC operating temperature range, the series is suitable for convection-cooled equipment. Target applications for the PDQ30-D Series include microcontrollers, datacom, telecom, remote sensor systems and portable electronics.
View ProductSpecifications
- Power (W): 16.5 ~ 20
- Input Voltage Range (VDC): 9 ~ 75
- Output Voltage (VDC): 3.3 ~ 24
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: CE
- RoHS Compliant: Yes
Features
- 20 W
- 4:1 input range
- Single/dual regulated outputs
- Compact chassis mount package
- LED indicator for power on
- Remote on/off control
- Output trim
- -40 to +85°C temperature range
- Efficiency up to 88%
