PXO78B-500-M Series

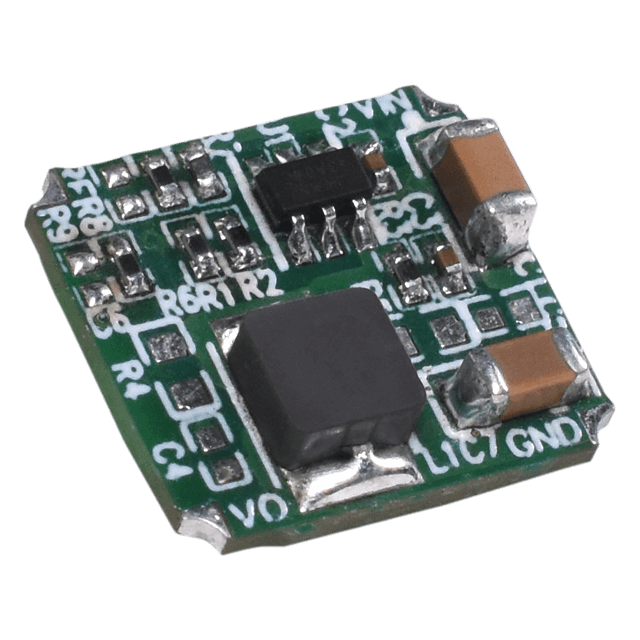

The PXO78B-500-M series is an ultra-thin, open-frame non-isolated DC-DC converter series that has been designed to offer a high performance alternative to linear regulators. Housed in a compact SMT package, this series features low ripple and noise and a no-load input current as low as 0.5mA. Additionally, it does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
Features
  • Ultra-thin
  • Open-frame SMD Package
  • Thickness - 3.5 mm
  • High efficiency up to 94%
  • No-load input current as low as 0.5 mA
  • Continuous short-circuit protection
Specifications
  • Power (W): 1.65 ~ 6
  • Input Voltage Range (VDC): 4.75 ~ 36
  • Output Voltage (VDC): 3.3 ~ 12
  • Operating Temperature Range (ºC): -40 ~ +80
  • Dimensions L x W x H (mm): 12.5 x 13.5 x 3.5
  • Dimensions L x W x H (in): 0.492 x 0.531 x 0.138
  • Standard Footprint: SMT4
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
