PTP15 Series

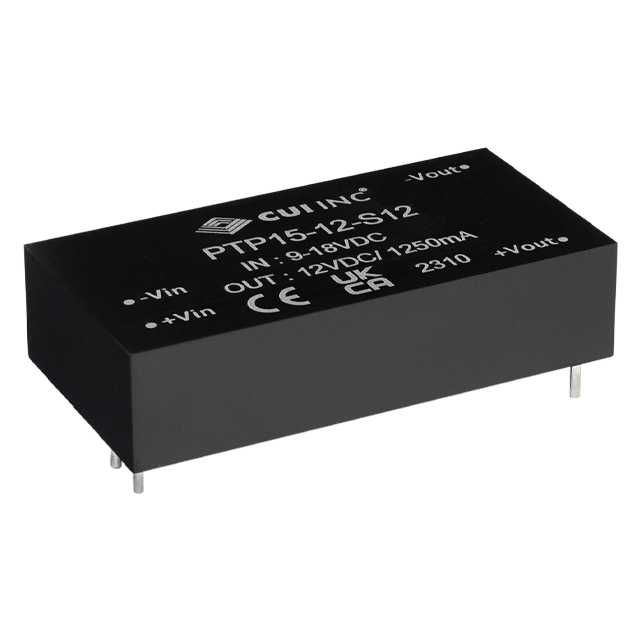

The PTP15 series is a 15 W isolated medical DC-DC converter offering 4000 VAC isolation or 5600 VDC isolation with a 2:1 input voltage range. Housed in an encapsulated, board mountable package, this series is medical grade and carries an extended temperature range of -40ºC ~ +100ºC, making it a reliable option for medical instrumentation, low power consumer electronics, and industrial equipment that requires high isolation voltage.
Features
  • 2:1 input range
  • Single regulated output
  • EN 55011 Class A without external components
  • Industry standard 2" x 1" package
Specifications
  • Power (W): 15
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 5 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +100
  • Dimensions L x W x H (mm): 50.8 x 25.4 x 12
  • Dimensions L x W x H (in): 2 x 1 x 0.47
  • Standard Footprint: 2" x 1"
  • Isolation (VDC): 5600
  • Isolated: Yes
  • Safety Standards: 60601
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
