PTM2-S Series

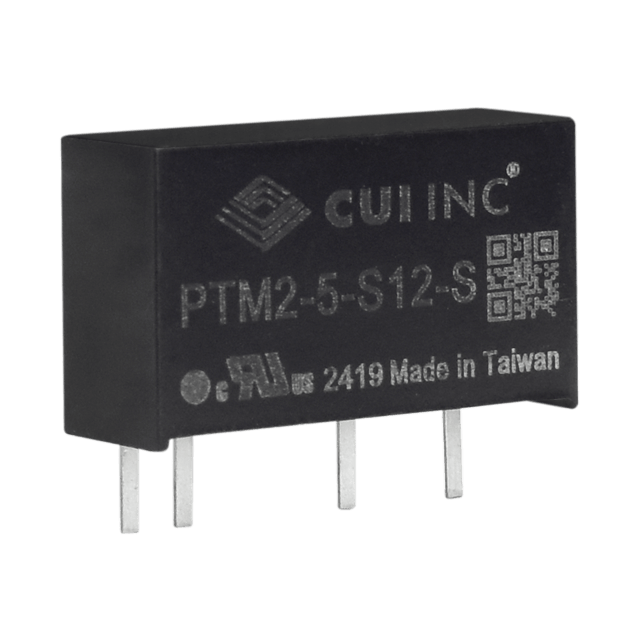

The PTM2-S series is a 2 W SIP isolated medical DC-DC converter offering 6000 VDC isolation with a 1:1 input voltage range. Enclosed in an encapsulated board mountable package, this series is EN 60601-1 certified and carries an extended temperature range of -40ºC ~ +95ºC with reinforced insulation, making it a reliable option for medical instrumentation, low power consumer electronics, and industrial equipment that requires high isolation voltage.
Features
  • 1:1 input range
  • Single/dual regulated outputs
  • Reinforced insulation
  • Continuous short circuit protection (SCP)
Specifications
  • Power (W): 2
  • Input Voltage Range (VDC): 2.97 ~ 26.4
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +95
  • Dimensions L x W x H (mm): 19.65 x 7.05 x 11.5
  • Dimensions L x W x H (in): 0.77 x 0.28 x 0.45
  • Standard Footprint: SIP7
  • Isolation (VDC): 6000
  • Isolated: Yes
  • Safety Standards: 60601, 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
