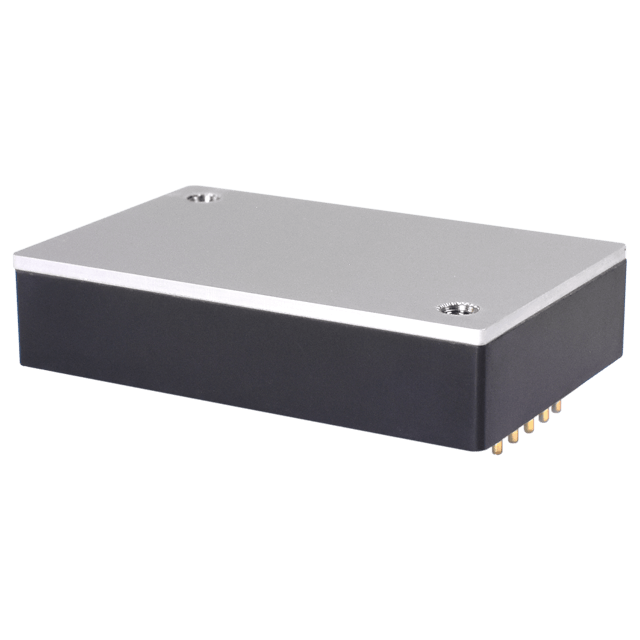

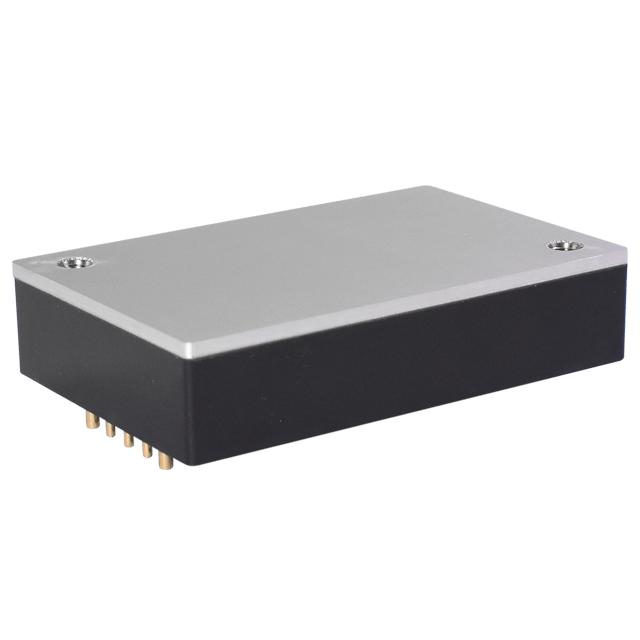

The PSC150W series is a 150 W, quarter brick DC-DC converter housed in a fully encapsulated case. These converters additionally offer EN 62368-1 certification, remote on/off control, baseplate cooling, and an ultra-wide 12:1 input range. The PSC150W series is ideally suited for renewable energy, industrial automation control, and railway applications where a large amount of power is needed in a compact package.
Features
  • 12:1 Input Range
  • Single regulated output
  • Industry standard quarter brick package
  • Baseplate cooling
  • Meets EN50155 railway standard
Specifications
  • Power (W): 150
  • Input Voltage Range (VDC): 14 ~ 160
  • Output Voltage (VDC): 12 ~ 54
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: 1/4 Brick
  • Isolation (VDC): 4200
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
