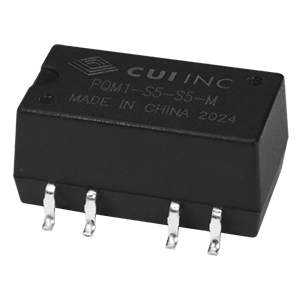

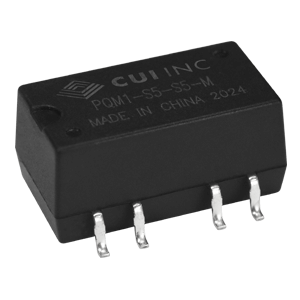

PQM1-M Series
Recommended Replacements

PDQ2-S Series
The PDQ2-S regulated DC-DC converter series is a family of 2 W isolated modules offering a wide 2:1 input range and 1,500 Vdc isolation. Housed in a compact 8 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product
PCN1-S Series
The PCN1-S unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 83% and 1,500 Vdc isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product
PCN1-M Series
The PCN1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 81% and 1,500 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product
PHP1-M Series
The PHP1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 76% and 2,000 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product- 1:1 input range
- Single regulated output
- Industry standard 10 pin SMT package
- Low no-load power consumption
- Efficiency up to 75%
- Power (W): 1
- Input Voltage Range (VDC): 11.4 ~ 25.2
- Output Voltage (VDC): 9
- Standard Footprint: SMT10
- Isolation (VDC): 1500
- Isolated: Yes
- RoHS Compliant: Yes
