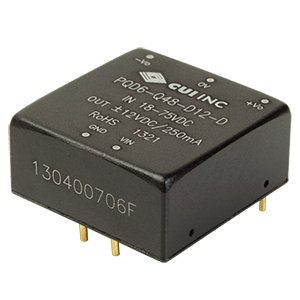

PQD6-D Series
Recommended Replacements

PDQ10-D Series
The PDQ10-D Series is an encapsulated 10 W isolated DC-DC converter packaged in an industry standard 1” x 1” footprint. These low-profile modules feature a 4:1 input voltage range and offer up to 86% efficiency. Housed in a compact DIP package and featuring a wide -40 to +105ºC operating temperature range, the series is suitable for convection-cooled equipment. Target applications for the PDQ10-D Series include microcontrollers, datacom, telecom, remote sensor systems and portable electronics.
View Product
PRC10W Series
The PRC10W Series is a single/dual regulated 10 W DC-DC converter designed to meet the needs of railway and other industrial applications. All models meet EN 50155 standards and offer a host of features, including an ultra-wide input range of 8.5~160 Vdc, a robust operating temperature range, and efficiencies up to 88%.
View Product- Single/dual regulated outputs
- Compact design
- 4:1 input range
- Six-sided shielded case
- -40 to +85°C temperature range
- Low no-load power consumption
- Efficiency up to 86%
- Power (W): 6
- Input Voltage Range (VDC): 9 ~ 75
- Output Voltage (VDC): 3.3 ~ 24
- Isolation (VDC): 1500
- Isolated: Yes
- RoHS Compliant: Yes
