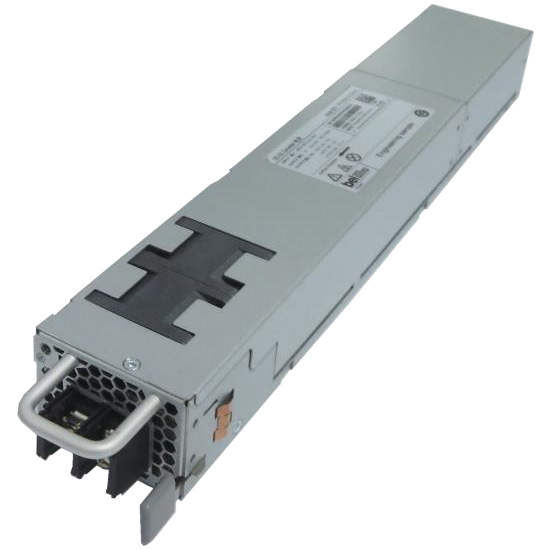

PFD1600 (DC-DC) Series
Specifications
- Power (W): 1600
- Input Voltage Range (VDC): -40 ~ -72
- Output Voltage (VDC): 12
- Operating Temperature Range (ºC): 0 ~ +65
- Dimensions L x W x H (mm): 321 x 54.5 x 40
- Dimensions L x W x H (in): 12.64 x 2.15 x 1.57
- Isolated: Yes
- Safety Standards: 62368
- RoHS Compliant: Yes
Features
- Hot-plug capable
- Parallel operation with active digital current sharing
- Dual internal fans - useful in high back pressure applications
- Bi-color (green/red) LED to indicate power supply status
- 256 bytes of EEPROM for user information
- I2C communication interface for control, programming, and monitoring with PSMI and power management bus protocol
