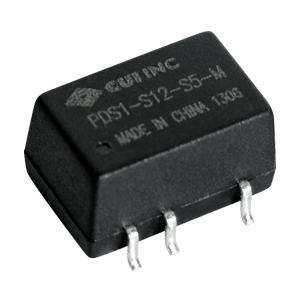

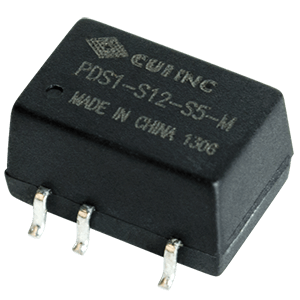

PDS1-M Series

The DEP1-M unregulated DC-DC converter series is a family of 1 W isolated modules designed to offer improved efficiency and higher isolation. Featuring a compact SMT package, an ultra-wide -40 to +105 ºC operating temperature range, and 3,000 Vdc isolation, these low power DC-DC converters provide a rugged barrier of protection for a range of sensitive applications, including medical equipment, industrial control, and mixed digital/analog systems.

The DHP1-M unregulated DC-DC converter series is a family of 1 W isolated modules designed to offer improved efficiency and higher isolation. Featuring a compact SMT package, an ultra-wide -40 to +105 ºC operating temperature range, and 2,000 Vdc isolation, these low power DC-DC converters provide a rugged barrier of protection for a range of sensitive applications, including medical equipment, industrial control, and mixed digital/analog systems.

The PCN1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 81% and 1,500 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.

The PCN1-S unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 83% and 1,500 Vdc isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.

The low cost PEM1A-S unregulated DC-DC converter series delivers efficiency up to 70% and 4,000 Vdc isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +85ºC operating temperature range, this low power DC-DC converter is ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.

The PHP1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 76% and 2,000 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
