PCSA1-S Series

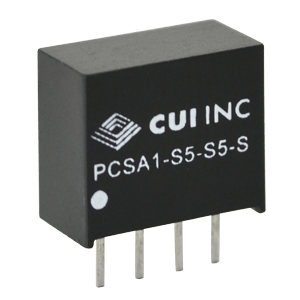

The PCSA1-S unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 82% and 1,000 Vdc isolation. Housed in a compact 4 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
Features
  • 1:1 input range
  • Single unregulated output
  • Industry standard 4 pin SIP package
  • Low ripple and noise
  • Efficiency up to 82%
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 4.5 ~ 26.4
  • Output Voltage (VDC): 5 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: SIP4
  • Isolation (VDC): 1000
  • Isolated: Yes
  • RoHS Compliant: Yes
