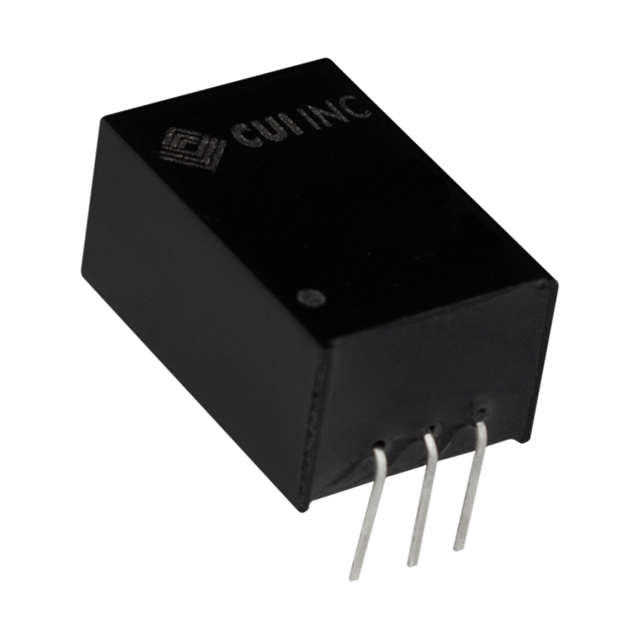

P78W-500R Series

The P78W-500R series is a family of compact non-isolated DC-DC converters designed to offer a high performance alternative to linear regulators. Housed in a compact 3-pin SIP package, this series is pin compatible with LM78XX model regulators, and features a wide input voltage range. Additionally, the P78W-500R does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
Features
  • Continuous short circuit protection (SCP)
  • Pin compatible with LM78XX linear regulators
  • Certified to EN/IEC/UL 62368-1
  • Straight or bent pin options
Specifications
  • Power (W): 0.9 ~ 7.5
  • Input Voltage Range (VDC): 9 ~ 90
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +85
  • Dimensions L x W x H (mm): 11.5 x 8.5 x 17.5
  • Dimensions L x W x H (in): 0.453 x 0.335 x 0.689
  • Standard Footprint: SIP3
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
