P78B-500 Series

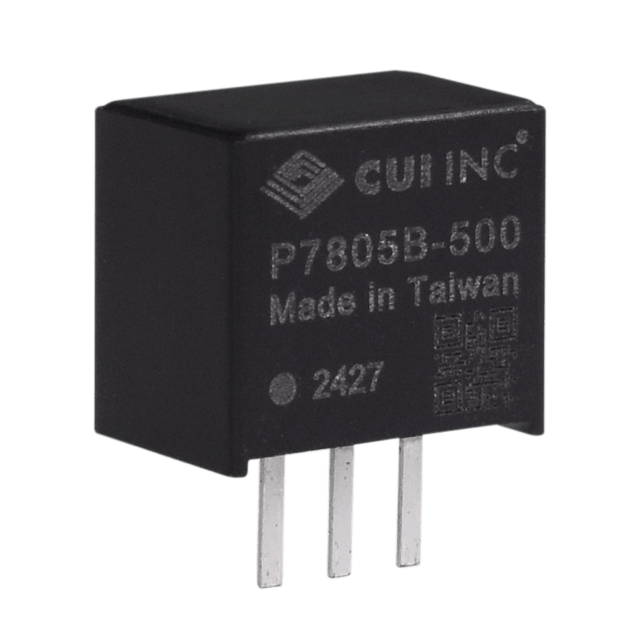

The P78B-500 Series is a family of compact non-isolated DC-DC converters designed to offer a high performance alternative to linear regulators. Housed in a compact 3-pin SIP package, this series is pin compatible with LM78XX model regulators, and features low ripple and noise. Additionally, the P78 DC switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
Features
  • Continuous short circuit protection (SCP)
  • Low ripple and noise
  • Pin compatible with LM78XX linear regulators
Specifications
  • Power (W): 0.9 ~ 7.5
  • Input Voltage Range (VDC): 4.75 ~ 36
  • Output Voltage (VDC): 1.8 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +85
  • Dimensions L x W x H (mm): 11.6 x 7.6 x 10.2
  • Dimensions L x W x H (in): 0.46 x 0.3 x 0.4
  • Standard Footprint: SIP3
  • Isolation (VDC): 0
  • Isolated: No
  • RoHS Compliant: Yes
