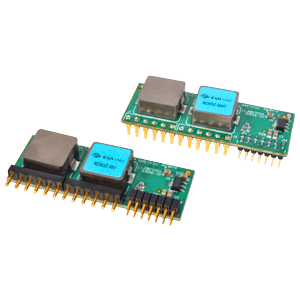

NDM3Z-90 Series

This product has been discontinued. If you have any questions or concerns, please contact our sales team.
Features
  • Class-leading efficiency
  • Superior transient response
  • Compensation free design — always stable
  • Programmable output voltage
  • Voltage tracking
  • Voltage margining
  • Active current sharing and droop sharing
  • up to 4 modules at 360 A
  • Snapshot™ parametric capture
  • Voltage/current/temperature monitoring
  • Synchronization and phase spreading
  • Differential voltage sense
  • Programmable soft start and soft stop
  • Fault management
  • Vertical and horizontal footprint versions
  • Architects of Modern Power® (AMP Group) teraAMP™ compatible
Specifications
  • Power (W): 162
  • Input Voltage Range (VDC): 7.5 ~ 14
  • Output Voltage (VDC): 0.6 ~ 1.8
  • Adjustable Output Voltage (VDC): 0.6 ~ 1.8
  • Isolation (VDC): 0
  • Isolated: No
  • RoHS Compliant: Yes
