New Product

DQM1-S Series

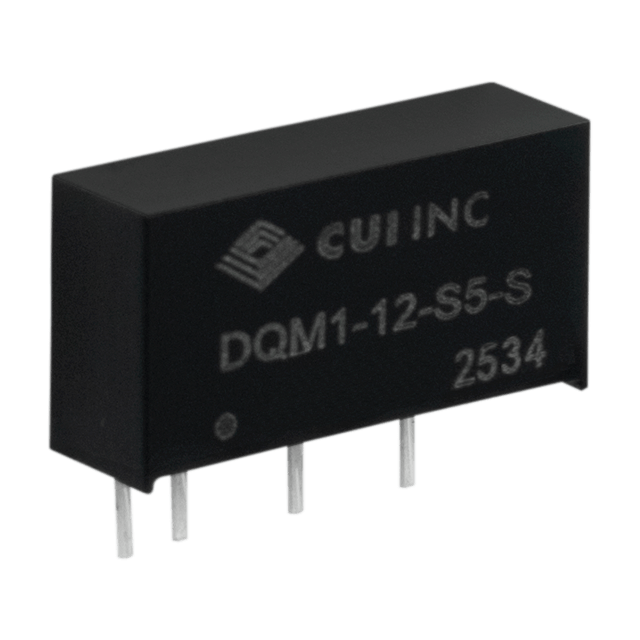

The DQM1-S series is a 1 W DC-DC converter offering 3000 Vdc isolation. Housed in a compact SIP6 footprint, this series carries a temperature range of -40 ~ +105°C, making it a reliable option for ITE and industrial applications.
Features
  • Industry standard SIP package
  • Single and dual regulated output
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 2.97 ~ 26.4
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +105
  • Dimensions L x W x H (mm): 19.6 x 6 x 10.1
  • Dimensions L x W x H (in): 0.772 x 0.236 x 0.398
  • Standard Footprint: SIP6
  • Isolation (VDC): 3000
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
