3D View
DQD6-48-S12-U
DC-DC Converters
6 W DC-DC Converter, 12 VDC, 0.5 A, 18 ~ 75 VDC Input Range, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (W) | 6 |
| Input Voltage Range (VDC) | 18 ~ 75 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 0.5 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 55 x 52.3 x 19 |
| Dimensions L x W x H (in) | 2.165 x 2.059 x 0.748 |
| Mounting Type | Chassis Mount |
| Standard Footprint | 2" x 2" |
| Market | ITE |
| Isolation (VDC) | 1600 |
| Isolated | Yes |
| Safety Standards | 62368 |
| Safety Approvals | CE, UKCA |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
Compatible Products with DQD6-48-S12-U
Related Products
DQD10-48-S12-U
10 W DC-DC Converter, 12 VDC, 0.833 A, 18 ~ 75 VDC Input Range, Chassis Mount
View Product
Related Products

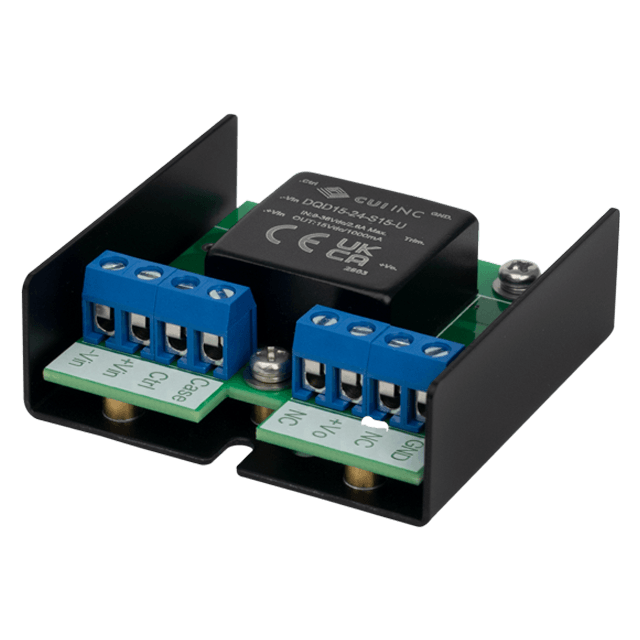

DQD15-48-S12-U
15W DC-DC Converter, 12VDC, 1.25A, 18 ~ 75VDC Input Range, Chassis Mount
View Product
Related Products

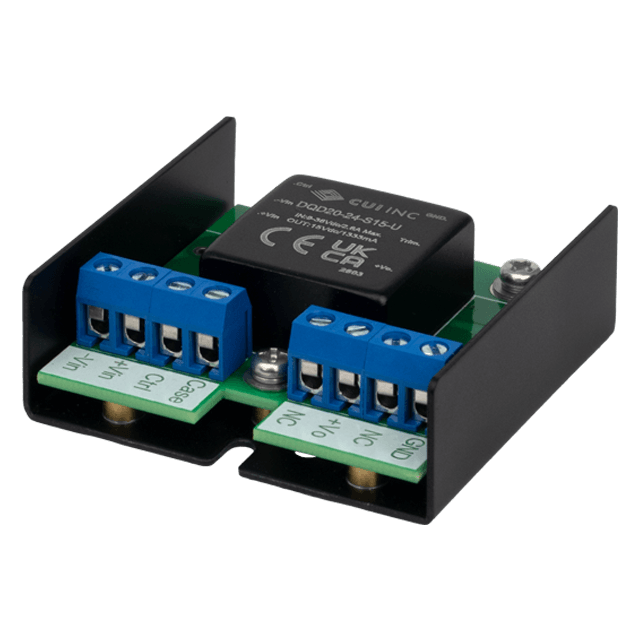

DQD20-48-S12-U
