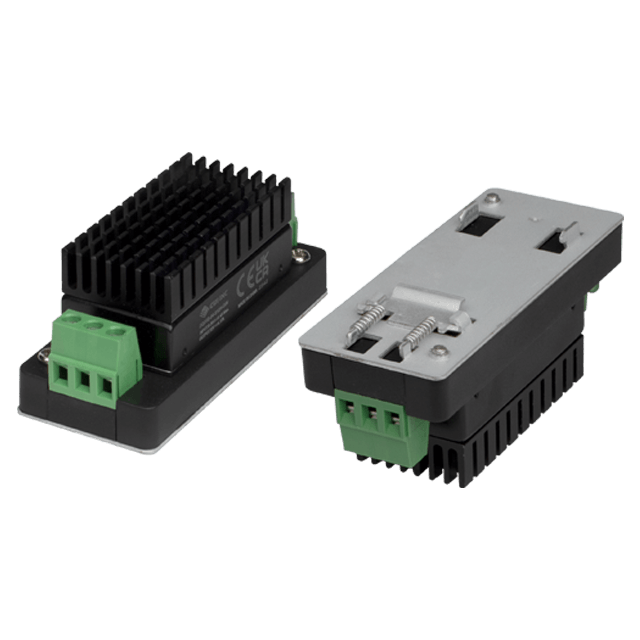

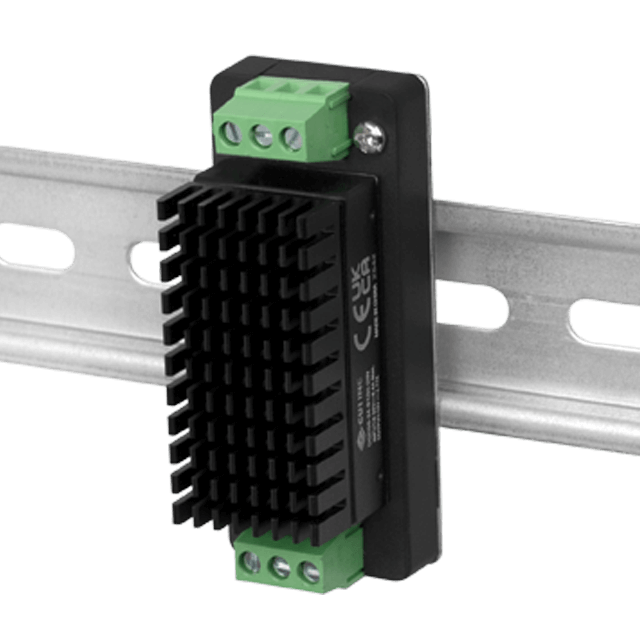

DQD50-DIN Series
Specifications
- Power (W): 50
- Input Voltage Range (VDC): 9 ~ 75
- Output Voltage (VDC): 5 ~ 24
- Operating Temperature Range (ºC): -40 ~ +105
- Standard Footprint: 2" x 1"
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: CE, UKCA
- RoHS Compliant: Yes
Features
- Single regulated outputs
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Input under voltage protection (UVLO)
- Remote on/off control
