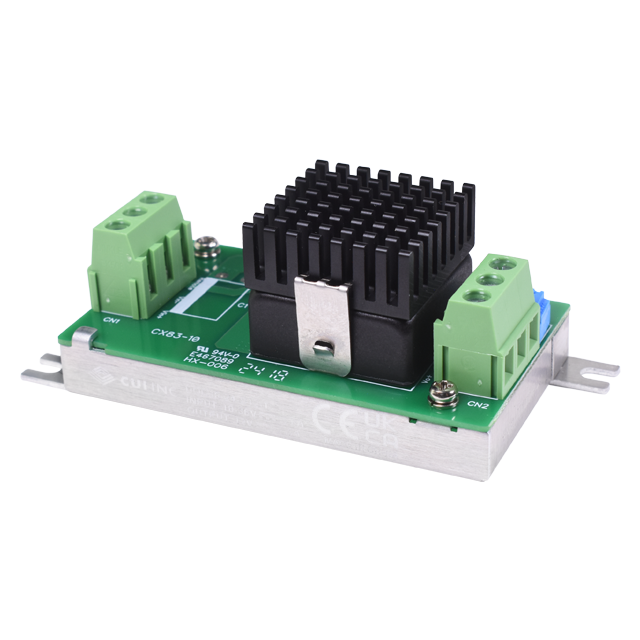

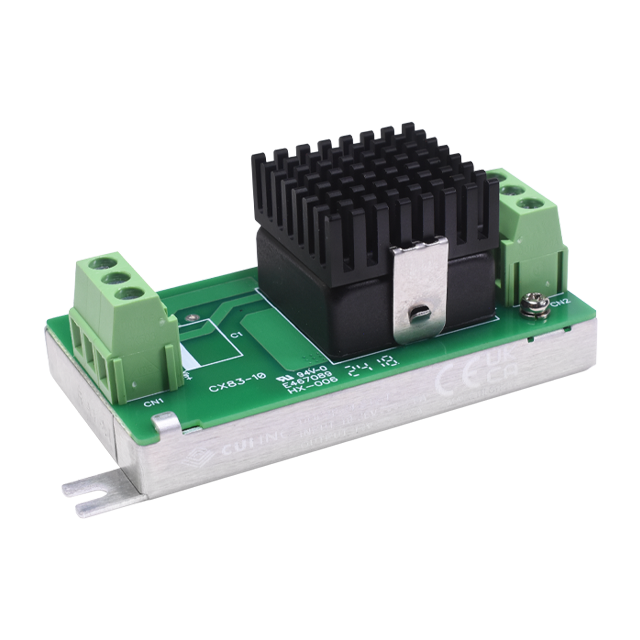

DQC30-T Series
Features
- Single/dual regulated outputs
- Remote on/off control
- No tantalum capacitor inside
- 5000 meter operating altitude
- Positive and negative logic options
Specifications
- Power (W): 30
- Input Voltage Range (VDC): 10 ~ 74
- Output Voltage (VDC): 3.3 ~ 15
- Operating Temperature Range (ºC): -40 ~ +100
- Dimensions L x W x H (mm): 84.2 x 37.5 x 30.6
- Dimensions L x W x H (in): 3.31 x 1.48 x 1.2
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: CE, UKCA
- RoHS Compliant: Yes
