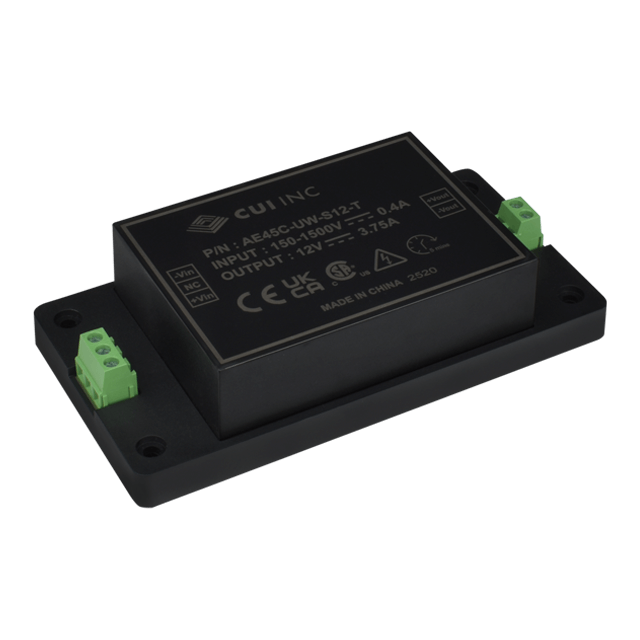

AE45C-UW-T Series
Specifications
- Power (W): 45
- Input Voltage Range (VDC): 150 ~ 1500
- Output Voltage (VDC): 12 ~ 48
- Operating Temperature Range (ºC): -40 ~ +80
- Dimensions L x W x H (mm): 135 x 70 x 32
- Dimensions L x W x H (in): 5.31 x 2.76 x 1.26
- Standard Footprint: DIP5
- Isolation (VDC): 5600
- Isolated: Yes
- Safety Standards: 62109, UL 1741
- Safety Approvals: CE, UKCA, UL/cUL
- RoHS Compliant: Yes
Features
- 4,000 Vac / 5,600 Vdc isolation
- Ultra-wide 10:1 input voltage range
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Input reverse polarity protection (RPP)
