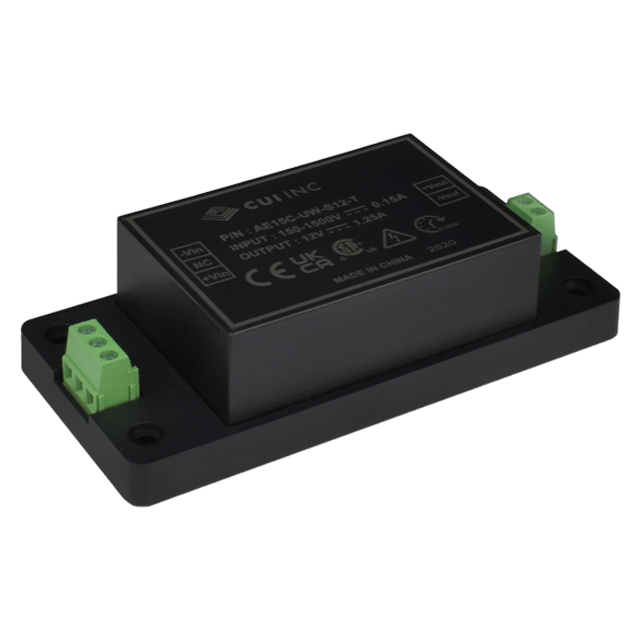

AE15C-UW-T Series

The AE15C-UW-T series is a 15 W DC-DC converter offering 5600 Vdc isolation. Housed in a chassis-mount package, this series carries a temperature range of -40 to 80°C, making it a reliable option for industrial and renewable energy applications.

Features

4,000 Vac / 5,600 Vdc isolation
Ultra-wide 10:1 input voltage range
Over current protection (OCP)
Short circuit protection (SCP)
Over voltage protection (OVP)
Input reverse polarity protection (RPP)

Specifications

Power (W): 10 ~ 15
Input Voltage Range (VDC): 150 ~ 1500
Output Voltage (VDC): 5 ~ 24
Operating Temperature Range (ºC): -40 ~ +80
Dimensions L x W x H (mm): 122.3 x 57.3 x 32
Dimensions L x W x H (in): 4.81 x 2.26 x 1.26
Standard Footprint: DIP5
Isolation (VDC): 5600
Isolated: Yes
Safety Standards: 62109, UL 1741
Safety Approvals: CE, UKCA, UL/cUL
RoHS Compliant: Yes
