3D View

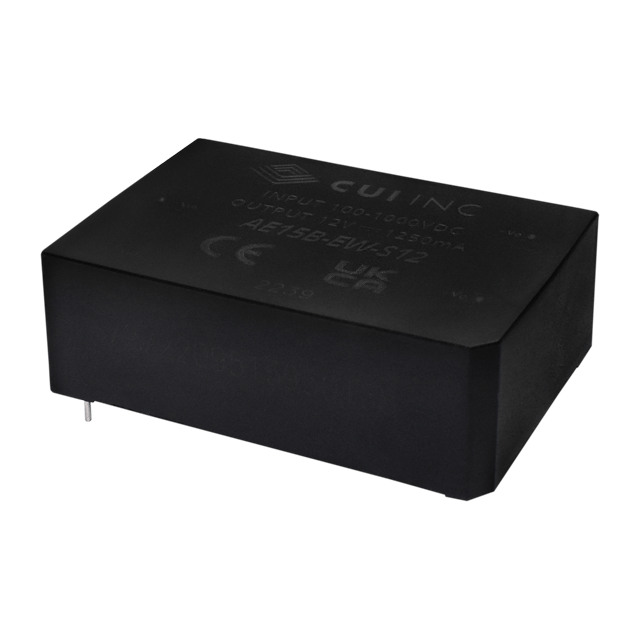

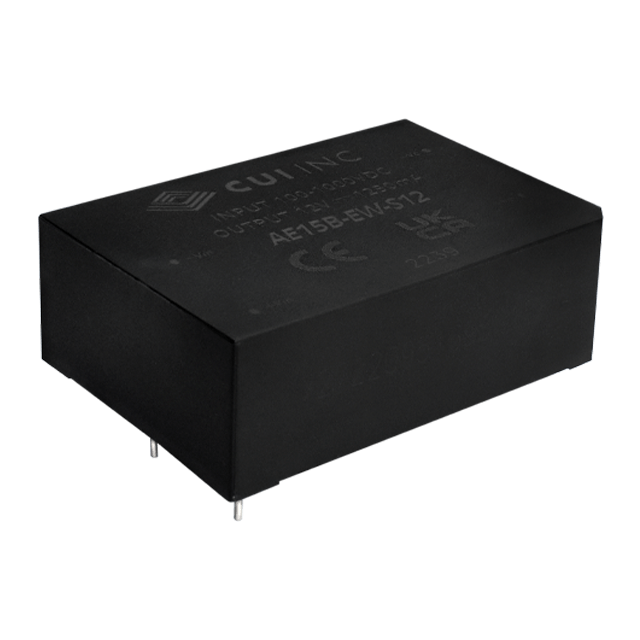

AE15B-EW-S24
DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for AE15B-EW-S24
AE15C-UW-S24
15 W DC-DC Converter, 24 VDC, 0.625 A Output, 150 ~ 1500 VDC Input Range, Through Hole
View ProductFeatures & Specifications
| Power (W) | 15 |
| Input Voltage Range (VDC) | 100 ~ 1000 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 0.625 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 70 x 48 x 23.5 |
| Dimensions L x W x H (in) | 2.76 x 1.89 x 0.925 |
| Mounting Type | Through Hole Mount |
| Isolation (VDC) | 5600 |
| Isolated | Yes |
| Safety Standards | 62109 |
| Safety Approvals | CE, UKCA |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
