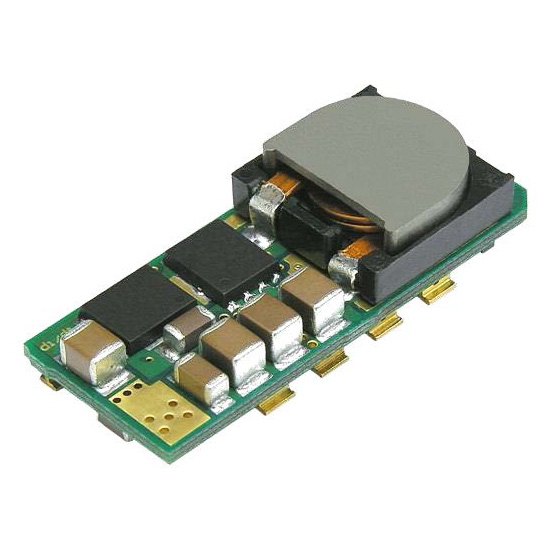

YNS05S16 Series
YNS05S16 Series

YNS05S16 Series

Bel Power Solutions point-of-load converters are recommended for use with regulated bus converters in an Intermediate Bus Architecture (IBA). The YNS05S16 nonisolated DC-DC converter delivers up to 16 A of output current in an industry-standard surface-mount package. Operating from a 3.0 to 5.5 VDC input, the YNS05S16 converters are ideal choices for Intermediate Bus Architectures where Point-of-Load (POL) power delivery is generally a requirement. The converters provide an extremely tight regulated, programmable output voltage from 0.7525 to 3.63 VDC.
Features
  • Synchronous Buck Converter topology
  • Start up into pre-biased output
  • Programmable output voltage via external resistor
  • Remote ON/OFF (positive or negative)
  • Auto-reset output overcurrent protection
  • Auto-reset overtemperature protection
Specifications
  • Power (W): 58
  • Input Voltage Range (VDC): 3 ~ 5.5
  • Output Voltage (VDC): 0.7525 ~ 3.63
  • Operating Temperature Range (ºC): -40 ~ +85
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CB, Nemko
  • RoHS Compliant: Yes
