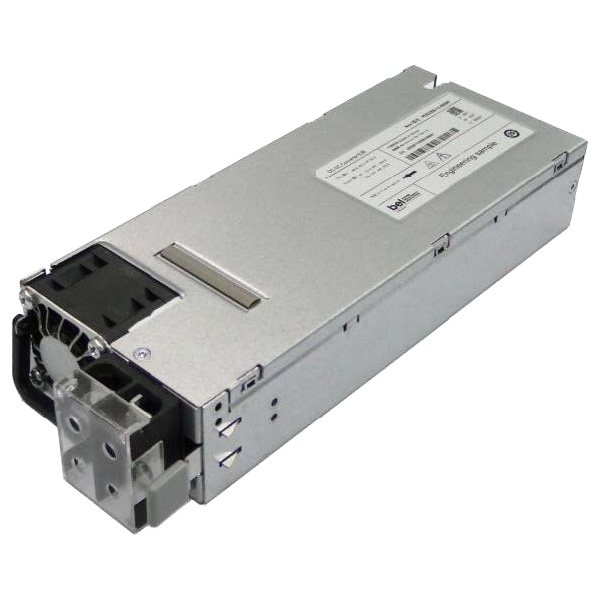

PES2200 (DC-DC) Series
Specifications
- Power (W): 2200
- Input Voltage Range (VDC): -40 ~ -75
- Output Voltage (VDC): 12
- Standby Output Voltage (VDC): 12
- Operating Temperature Range (ºC): 0 ~ +55
- Dimensions L x W x H (mm): 195 x 80 x 40
- Dimensions L x W x H (in): 7.68 x 3.15 x 1.57
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: BIS, CB, CE, CQC, CSA, Nemko
- RoHS Compliant: Yes
Features
- Hot-plug capable
- Parallel operation with active current sharing
- Full digital controls for improved performance
- Status LED with fault signaling
- Power Management Bus communication interface for control, programming and monitoring
