0RQB-X0S11 Series
0RQB-X0S11 Series

0RQB-X0S11 Series

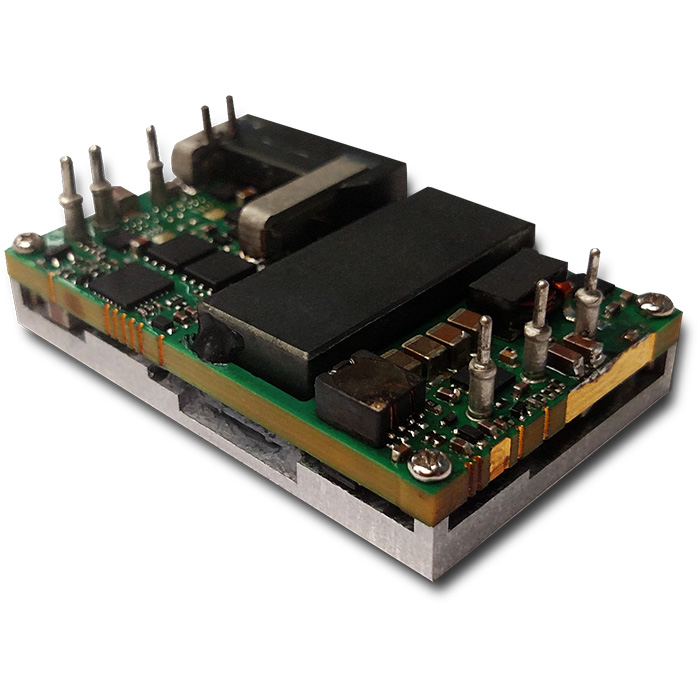

0RQB-X0S11x is an isolated and regulated DC-DC converter that operates from a nominal 52 Vdc source. This unit provides up to 1000 W output power from a nominal 52 Vdc input. This unit is designed to be highly efficiency and low cost. Features include remote on/off, short circuit protection, over current protection, under voltage lockout, power good indication and over temperature protection. The converter is provided in an industry standard quarter brick package.
Features
  • High Efficiency
  • High Power Density
  • OCP/SCP
  • Parallel Operation with Droop
  • Approved to UL/CSA/IEC60950-1, 2nd +A2 version
  • Class 2, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
Specifications
  • Power (W): 1000
  • Input Voltage Range (VDC): 45 ~ 58
  • Output Voltage (VDC): 10.6
  • Operating Temperature Range (ºC): -40 ~ +85
  • Standard Footprint: 1/4 Brick
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CSA, Nemko
  • RoHS Compliant: Yes
