0RQB-S0M11 Series
0RQB-S0M11 Series

0RQB-S0M11 Series

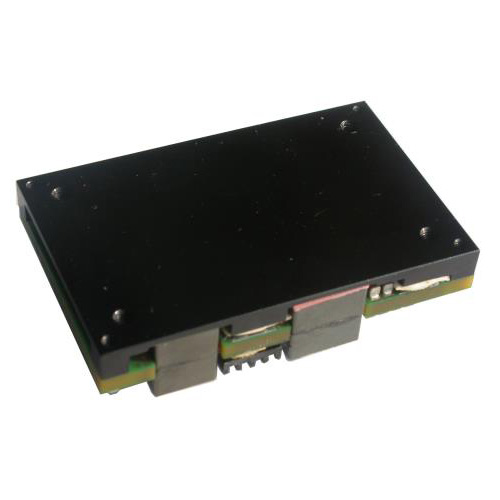

The 0RQB-S0M11x is an isolated DC-DC converter that operates from a nominal 54 Vdc source. This converter is intended to provide isolation and step down to generate an regulated intermediate bus for the purpose of powering non-isolated Point-of-Load (POL) converters. This unit will provide up to 700W of output power from a nominal 54 Vdc input. This converter is provided in a 1/4 brick package.
Features
  • I/O Isolation Voltage: 500 V
  • Single
  • Type input Voltage: 54 V
Specifications
  • Power (W): 700
  • Input Voltage Range (VDC): 48.6 ~ 60
  • Output Voltage (VDC): 11.2
  • Operating Temperature Range (ºC): -20 ~ +85
  • Standard Footprint: 1/4 Brick
  • Isolation (VDC): 500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, UL
  • RoHS Compliant: Yes
