BCF19-700 Series

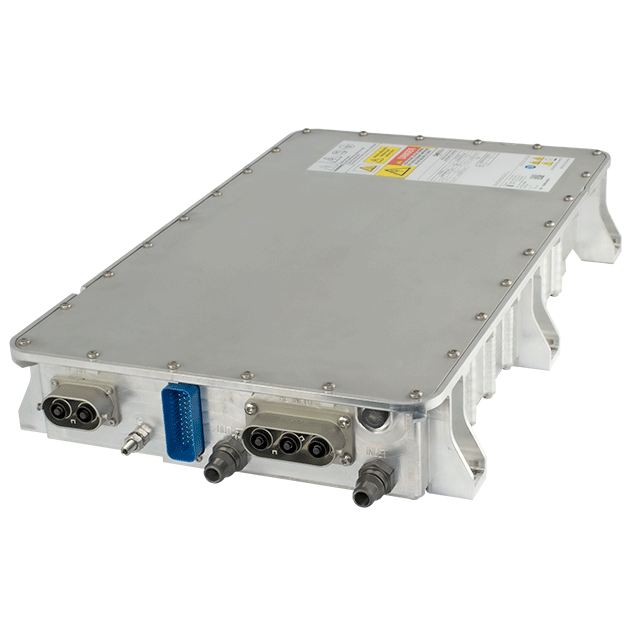

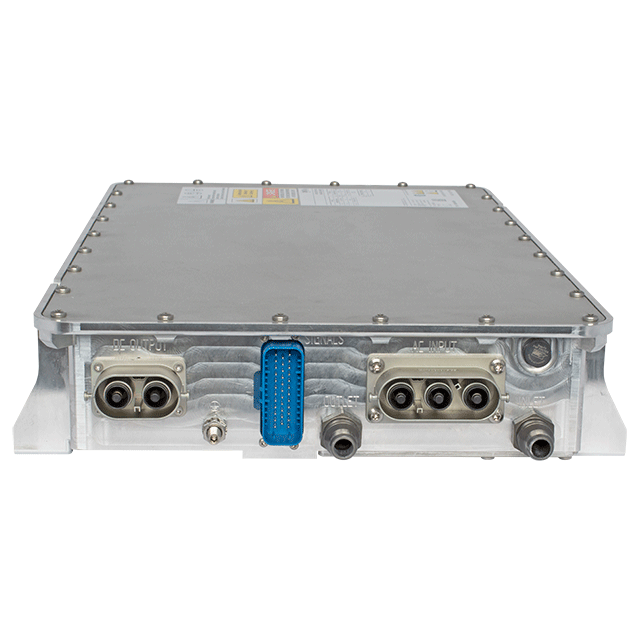

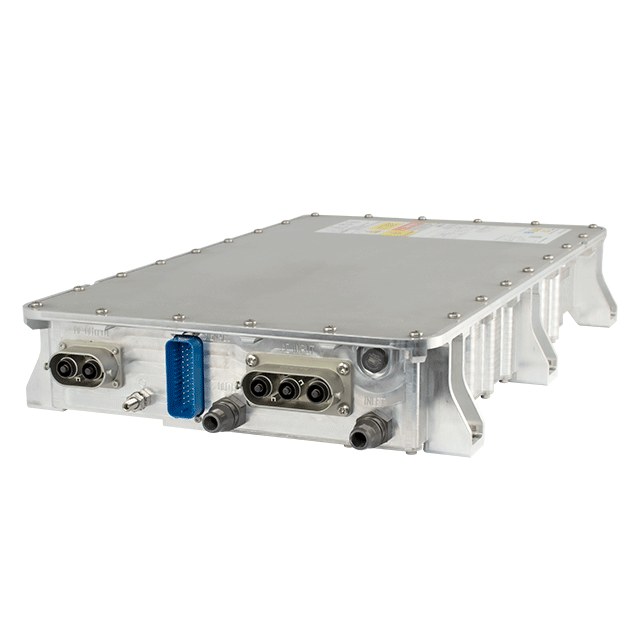

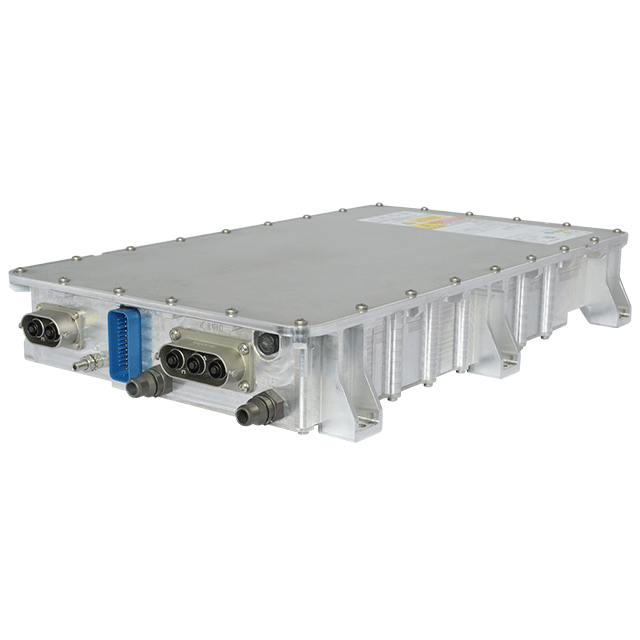

The Bel Power Solutions BCF19-700-8 is a 19.2 kW liquid cooled on-board battery charger for hybrid (HEV) or full electric (EV) vehicles. The BCF19-700-8, can be powered by standard EVSE charging stations directly from public grid in custom systems (Single Phase or Split-Phase 100 – 277 VAC) to charge the HV batteries. Any alternative power sources, such as generators, must be tested and qualified by a system integrator before use in the final application. The output voltage covers a wide variety of HV batteries in the range from 450 VDC to 900 VDC with constant output current of 30 A.
Features
  • Typical full load efficiency 94 %
  • CAN bus serial interface
  • Over temperature, output over voltage and over current protection
  • SAE J1939 compliant CAN control and monitoring
  • SAE J1455 compliant environmental standards
  • IEC 61851-21-1 compliant immunity requirements
  • IP rating IP67 & IP6K9K, Type 6
  • Safety-approved to UL 2202 (Second Edition)
Specifications
  • Power (W): 19200
  • Voltage Input Range (VAC): 90 ~ 305
  • Output Voltage (VDC): 450 ~ 900
  • Operating Temperature Range (ºC): -40 ~ +60
  • Dimensions LxWxH (mm): 594 x 372 x 95
  • Cooling Type: Liquid
  • RoHS Compliant: Yes
