Accessories for Melcher™ Cassettes
Purpose-built to complement Melcher™ cassette-style power supplies, these accessories ensure seamless integration, enhanced functionality, and reliable operation across demanding industrial and transportation environments. From mounting hardware and connectors to thermal management components, each accessory is designed to support optimal performance for your Melcher™ power solution.
Product Resources
Technical Paper
EN 50155: The Essential Standard for Power Supply Design in Railway Applications
Power Supplies
Learn more about the EN 50155 standard, and the five areas that are crucial when designing power supplies for railway rolling applications.
Read Technical PaperAttribute Filters
Product Type
Suitable for Series
101 Products
| Product | 3D Model | Datasheet | Product Type | Suitable for Series | Description |
|---|---|---|---|---|---|
|
|
Rack | T | Rack for systems with up to 3 T units | |
|
|
|
Backplane | T | Backplane for front-end application | Fitted with diodes | |
|
|
|
Backplane | T | Backplane for front-end application | Fitted with diodes | output capacitors 90 mF | |
|
|
|
Backplane | T | Backplane for battery charger application | Fitted with fuses | |
|
|
|
Backplane | T | Backplane for battery charger application | Fitted with fuses | Input filters 90mF | |
|
|
|
Backplane | T | Backplane for battery charger application | Fitted with fuses | Input filters 50mF | |
|
|
|
Connector | N/A | H11 Connector | Faston terminals 6.3 — 0.8 mm | |
|
|
|
Connector | N/A | H11 Connector | Screw terminals | 90° | 2.5 mm2 (AWG 13) | torque = 26.6 Ncm | |
|
|
|
Connector | N/A | H11 Connector | Solder pin 5.2 mm | Ø 1.6 mm | |
|
|
|
Connector | N/A | H11 Connector | Faston terminals 6.3 — 0.8 mm | solderable (short molding) | |
|
|
|
Connector | N/A | H15S4 Connector | 7 faston terminals 6.3 — 0.8 mm | 4 solder jacks | |
|
|
|

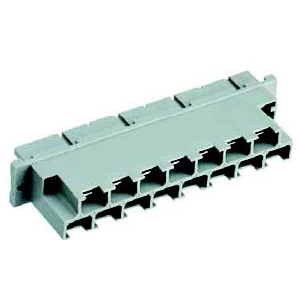

Connector | N/A | H15 Connector | Faston terminals 6.3 — 0.8 mm | |
|
|
|
Connector | N/A | H15 Connector | Screw terminals | 90° | 2.5 mm2 (AWG 13) | torque = 26.6 Ncm | |
|
|
|
Connector | N/A | H15S4 Connector | 7 faston terminals 6.3 — 0.8 mm | 4 screw jacks | |
|
|
|
Connector | N/A | H11 Connector | Press fit 6.5 mm | Ø 1.0 mm | |
|
|
|
Connector | N/A | H15 Connector | Solder pins 4.0 mm | Ø 1.6 mm | |
|
|
|
Connector | N/A | H15 Connector | Solder pins 10.1 mm | Ø 1.6 mm | 90° bent contacts | |
|
|
|

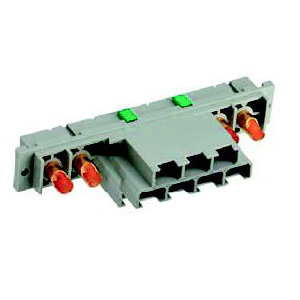

Connector | N/A | H15S2 Connector | 11 faston terminals 6.3 — 0.8 mm | 2 solder jacks | |
|
|
|
Connector | N/A | H15S2 Connector | 11 faston terminals 6.3 — 0.8 mm | 2 screw jacks | |
|
|
|
Connector | N/A | H15 Connector | Press fit 4.5 mm | Square 0.6 mm (double-pin version) | |
|
|
|
Connector | N/A | H15 Connector | Cage clamp contacts | Wire gauge Ø 0.14 - 1.5 mm | |
|
|
|

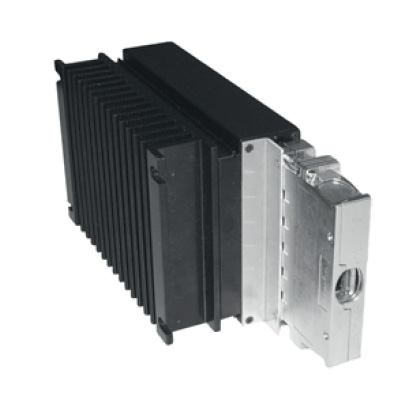

Cable Hood | N/A | Metallic cable hood for H15 | H15S2 | H15S4 Connectors fixed with clips HZZ01209-G | |
|
|
|

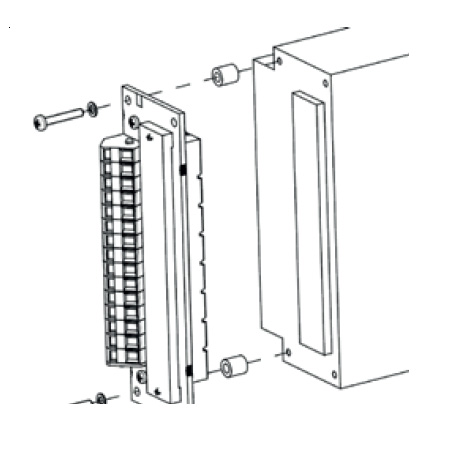

Cage Clamp | N/A | Cage clamp adapter allows for connecting a converter with cage clamp technique | |
|
|
|

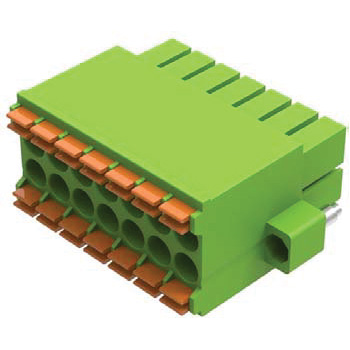

Connector | RCM150, RCM300 | Female connector for RCM Series 14 pins | 0.2 – 1.5 mm², 24 – 16 AWG | Phoenix Contact 1790344 | |
|
|
|

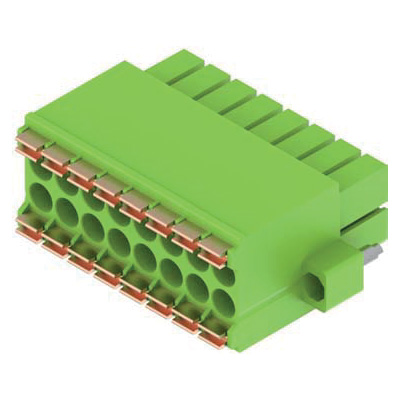

Connector | RCM1000, RCM500 | Female connector for RCM Series 16 pins | Phoenix Contact 1790357 |
Loading more products . . .
