WLT450 Series
WLT450 Series

WLT450 Series

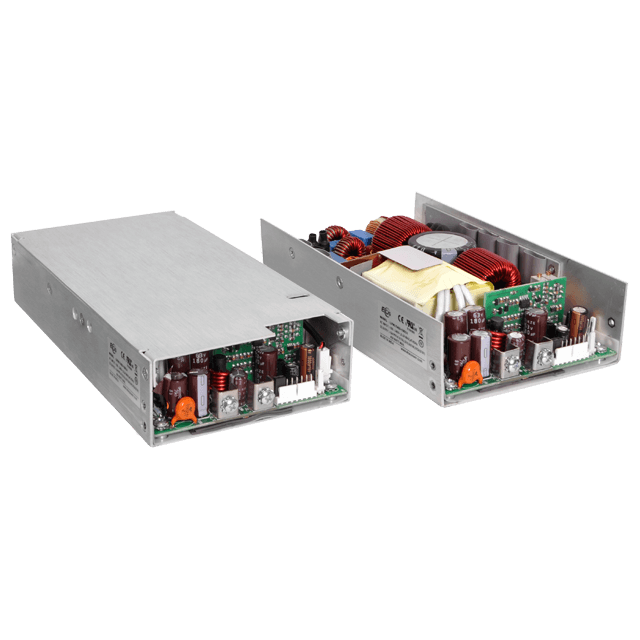

The EOS Power WLT450 Series of open-frame power supplies, with its wide universal 90-264 VAC input range and high power density, is available at 450 W of output power and a variety of single and multiple output voltages. The high efficiency and high power density of the WLT450 family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally friendly end products. These power supplies are ideal for telecom, datacom, industrial equipment and other applications. Made In India Image
Features
  • Side Fan or Top Fan Mounting Option Product
  • Current Sharing Option Product
  • ITE Safety Agency Approvals
  • RoHS Compliant
  • CE Marked LVD
Specifications
  • Power (W): 450
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): 0 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, Nemko, UL
  • RoHS Compliant: Yes
