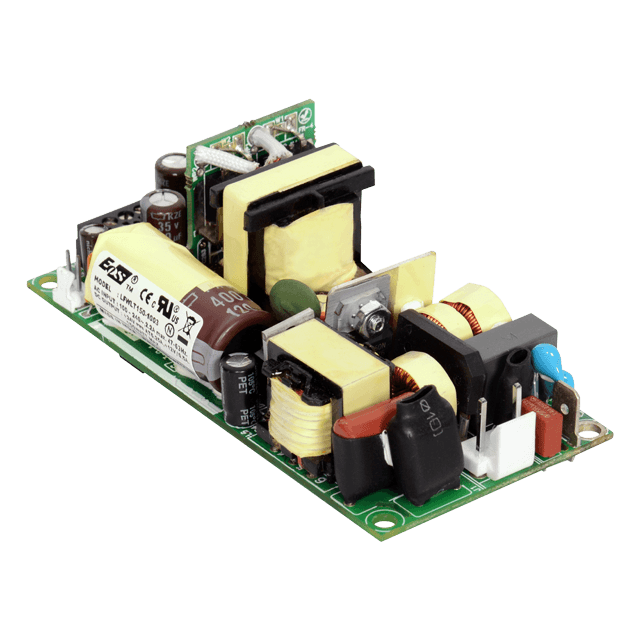

WLT150 Series
Specifications
- Power (W): 150
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 5 ~ 48
- Operating Temperature Range (ºC): -20 ~ +70
- Cooling Type: Fan
- Dimensions L x W x H (mm): 101.6 x 50.8 x 33.02
- Dimensions L x W x H (in): 4 x 2 x 1.3
- Safety Standards: 62368
- Safety Approvals: CB, CE, Nemko, UL
- RoHS Compliant: Yes
Features
- No Minimum Load Required
- IEC Protection Class Option - Class I: Earthing Tab J4 (no suffix)
- IEC Protection Class Option - Class II: No Earthing Tab (-2 suffix)
- ITE Safety Agency Approvals
- RoHS Compliant
- CE Marked
- Cover Kit, Base Plate, U-Channel, L-Bracket package options avaliable
