VOFM-150E-U Series

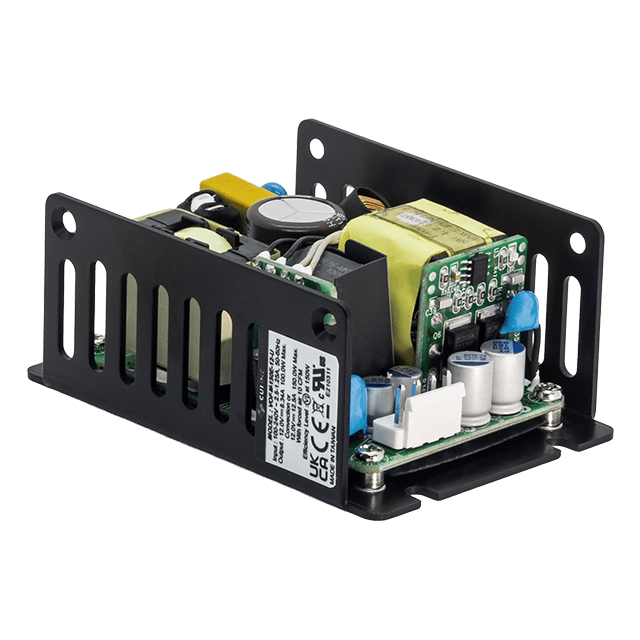

The VOFM-150E-U series is a medically-certified family of U-Chassis AC-DC power supply. Outputting 150 W power, these modules feature a universal 90 ~ 264 VAC input voltage range and a wide operating temperature range of -20°C ~ 70°C, making them ideal for medical applications.
Features
  • 3”x2” compact size, industrial design
  • Low no load power consumption (<0.150 W)
  • Main output power ON LED indicators
  • 2 x MOPP (BF rated)
  • Short circuit protection (SCP)
  • Over power protection (OPP)
  • Over voltage protection (OVP)
Specifications
  • Power (W): 150
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 54
  • Operating Temperature Range (ºC): -20 ~ +70
  • Cooling Type: Convection, Fan
  • Dimensions L x W x H (mm): 90.6 x 64 x 38
  • Dimensions L x W x H (in): 3.57 x 2.52 x 1.5
  • Safety Standards: 60601
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
