Medical

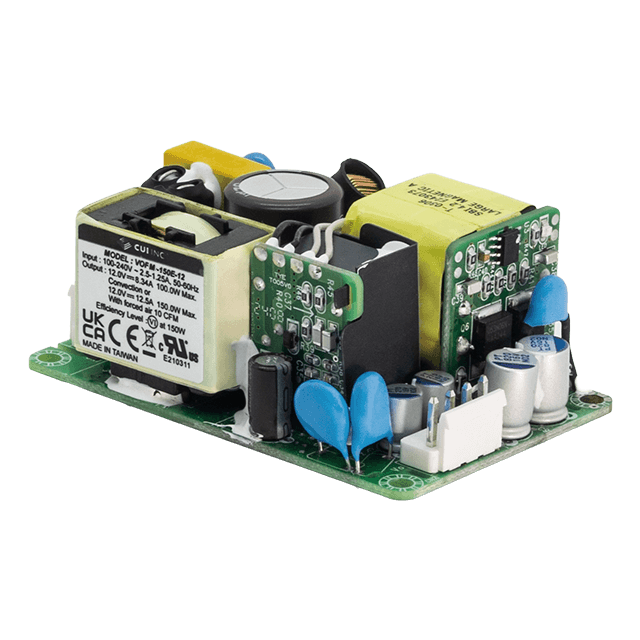

VOFM-150E Series
Specifications
- Power (W): 150
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 12 ~ 54
- Operating Temperature Range (ºC): -20 ~ +70
- Cooling Type: Convection, Fan
- Dimensions L x W x H (mm): 76.2 x 50.8 x 31
- Dimensions L x W x H (in): 3 x 2 x 1.22
- Safety Standards: 60601
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- 3”x2” compact size, industrial design
- Low no load power consumption (<0.150 W)
- Main output power ON LED indicators
- 2 x MOPP (BF rated)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over voltage protection (OVP)
