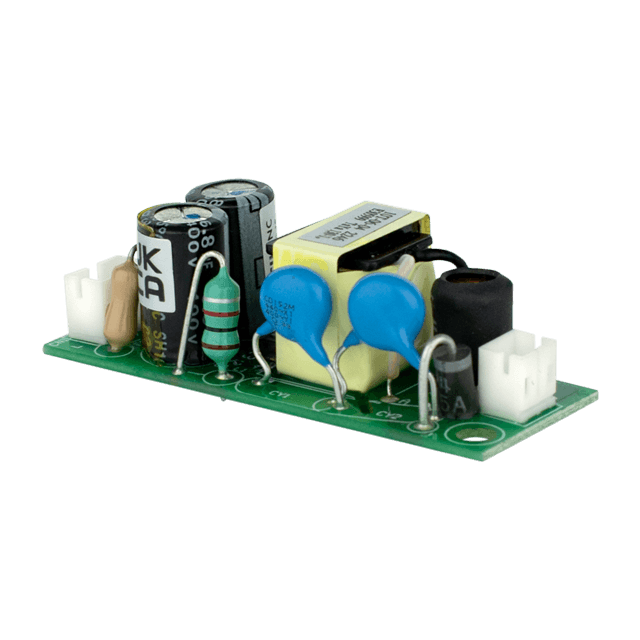

VOF-6G Series

The VOF-6G series is a family of Chassis Mount Open Frame AC-DC power supplies. Outputting 6W power, these modules feature a universal 90-264 Vac input voltage range and a wide operating temperature range of -40 ~ 80°C, making them ideal for most ITE applications

Features

High efficiency up to 83%
Low no load power consumption (<0.075 W)
Certified to IEC/EN/UL 62368-1
Designed to meet IEC/EN 60335-1
Class II
Over voltage (OVC II & OVC III) and short-circuit protection
Operating altitude 5,000 m
CISPR/FCC Class B

Specifications

Power (W): 4.95 ~ 6
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 3.3 ~ 24
Operating Temperature Range (ºC): -40 ~ +80
Cooling Type: Convection
Dimensions L x W x H (mm): 39.5 x 19.4 x 18.3
Dimensions L x W x H (in): 1.56 x 0.76 x 0.72
Safety Standards: 62368
Safety Approvals: CE, UL/cUL
RoHS Compliant: Yes
