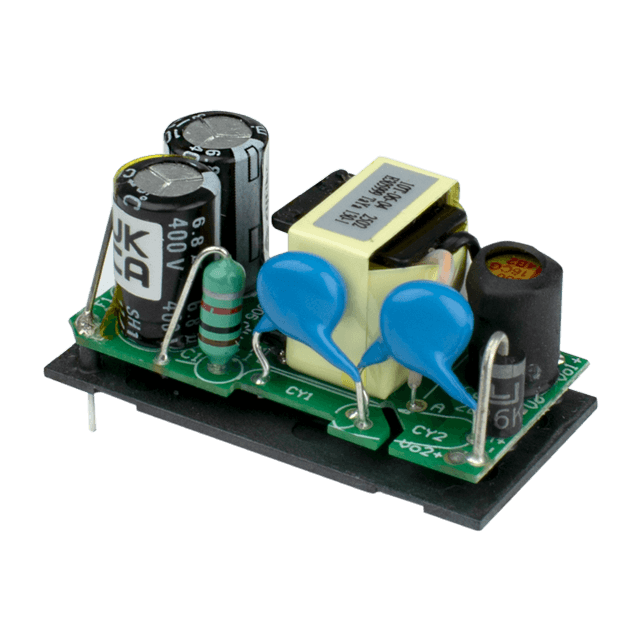

VOF-6G-P Series
Specifications
- Power (W): 4.95 ~ 6
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 3.3 ~ 24
- Operating Temperature Range (ºC): -40 ~ +80
- Cooling Type: Baseplate
- Dimensions L x W x H (mm): 49.5 x 18.5 x 17.5
- Dimensions L x W x H (in): 1.95 x 0.73 x 0.689
- Safety Standards: 62368
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- High efficiency up to 83%
- Low no load power consumption (<0.075 W)
- Certified to IEC/EN/UL 62368-1
- Designed to meet IEC/EN 60335-1
- Class II
- Operating altitude 5,000 m
- CISPR/FCC Class B
- Over voltage protection (OVP)
- Short circuit protection (SCP)
